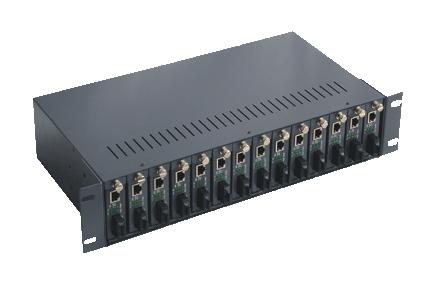

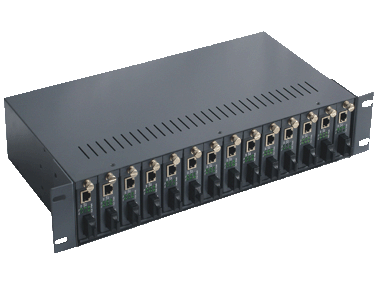

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
Specifications
Place of Origin :
China
Brand Name :
Fiberroad
MOQ :
10pcs
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
100% T/T advance
Supply Ability :
5000pcs/Month
Model Number :
FR- R14A
Certification :
CE
Product name :
Fiber Optic Media Converter
Mode: :
Single mode , Multi mode
AC Voltage: :
AC 85~265V
Structure :
2U rack
Port :
14 / 16 Port
Wavelength: :
850nm/1310nm/1550nm
Price :
Pls send request details
Description

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply

Advantage:

14-Slot Rackmount Chassis with 4 Fans for cooling device to work more stable.

14-sLOT Rackmount Chassis with 2 Power Supply, AC + AC , DC+ DC, or AC+ DC for optional

14-Slot Rackmount Chasis with 4 Package Inner Box to packle into 1 Carton Box to keep safety

transport .

  • The configuration of active/standby power supply ensures uninterruptible operation of the system.
  • Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;
  • Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
  • Each card supports hot swapping;

Technical Indexes Description:

Parameter

Specifications

Number of slots

16

14

Structure

2U rack

2U rack

Power input

AC Voltage: AC 85~265V; frequency: 50/60 Hz

AC Voltage: AC 85~265V; frequency: 50/60 Hz

DC voltage: DC-36~72V

DC voltage: DC-36~72V

Power output

DC5V 16A

DC5V 16A

Ripple

<20mv

<20mv

Power configuration

Single power supply; or

Dual power supply for warm backup mode

Single power supply; or

Dual power supply for warm backup mode

LED indication

POWER (power supply)

POWER (power supply)

Max. power consumption

80W

80W

Operating temperature

-10~55ìC

10~55ìC

Operating humidity

5%~90%

5%~90%

Maintaining temperature

-40~70ìC

-40~70ìC

Maintaining humidity

5% ~ 90% non-condensing

5% ~ 90% non-condensing

Dimensions of rack

90mm (H) * 485mm (W) * 245mm (D)

88mm (H) * 442mm (W) * 350mm (D)

Order information:

Model No

Description

FR-R 14A

14-slot dual-power supplies rack (220v)

FR-R14D

14-slot dual-power supplies rack (-48v)

FR-R 16A

16-slot dual-power supplies rack (220v)

FR-R16D

16-slot dual-power supplies rack (-48V)

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply

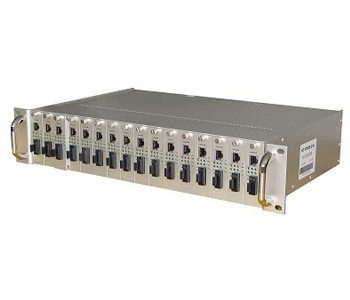

16 Slot Media Converter Rack

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply

14 Slot Media Converter Rack
