DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+
Specifications
Place of Origin :
China
Brand Name :
Fiberroad
MOQ :
10pcs
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
100% T/T advance
Supply Ability :
5000pcs/Month
Certification :
CE
Model Number :
FR-10G-MC-S
Price :
Pls send request details
Product name :
Media Converter Fiber Optic
Mode: :
Single mode , Multi mode
Transmission Speed :
10Gb/s
Data Rate FX/TX: :
10Gbase-SR/LR/ER/ZR
Interface Type :
RJ45 To SFP+
Wavelength: :
DWDM/CWDM
Description

DWDM / CWDM 10G Media Converter Copper To Fiber , RJ45 To SFP+

MAIN APPLICATIONS

  • Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission
  • Media converter for network backbone(SAN, LAN, MAN)
  • Can be applied in Telecommunication room, R&D laboratory, Data center, and etc.

KEY Feature:

  • Support Jumbo Frame
  • Transparent Transport and very low delay
  • Support ITUT prescribed DWDM/CWDM wavelength
  • Support DMI function for SFP+ fiber module
  • Support Loopback test function
  • Economic In-band Management function
  • powerful Network Management function(Web,SNMP,Console)
  • Support hot plugging

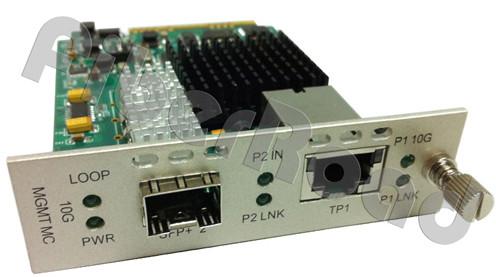

  • Support 2U Rack (16 channel) and standalone use
  • Full State Led display
  • Easy installation
  • UTP cable length detection(only RJ45 interface)

Technical Information:

Performance Data

Technical Indexes

Transmission Speed

10Gb/s

Protocols

IEEE802.3an(10Gbase-T),IEEE802.3ae(10Gbase-SR/LR/ER/ZR)

Access Type

10G LAN

Interface Type

Type: RJ45 To/From SFP+

Transmission Distance

SFP+ module: Up to 80Km

10Gbase-T: 100meters Cat .6a cable

Maximum Packet

Forwarding Rate

14,880,950/S

Network management

information:

• Card type information

• SFP+ fiber module detection

• SFP+ fiber module DMI function ( Temperature , Voltage , Optical power )

• Link status detector

• Enable/Disabled Loopback test function

• UTP cable length detection ( only RJ45 interface )

• Remote card's status monitor ( only in pairs )

power requirement

Rack-mountable : AC 85 ～ 220V OR DC -48V

Standalone: AC 220V OR DC -48V

Power consumption: ≤9W

Work Environment

Operating Temp: 0~ 50 ℃

Storage Temp: -10~ 70 ℃

Humidity: 5%~90% ( non-condensing )

Dimension

Card : 11.5mm ( W ) × 78mm ( D )

Standalone : 156mm ( W ) × 128mm ( D ) × 32mm ( H )
