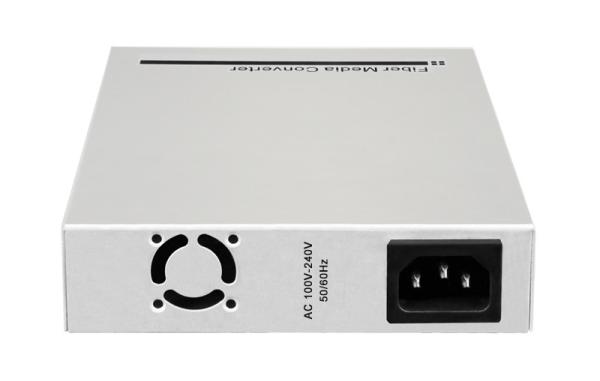

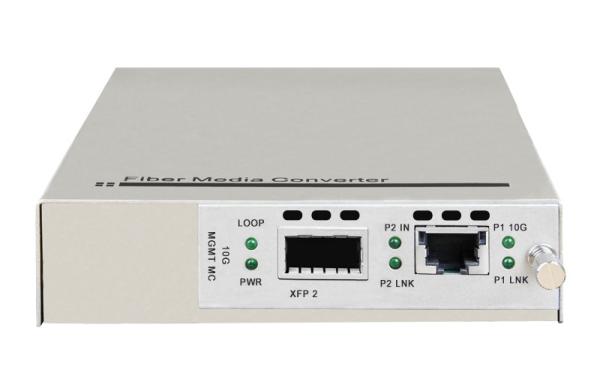

SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone
Specifications
Place of Origin :
China
Brand Name :
Fiberroad
Certification :
CE, FCC, RosH , ISO9000
Model Number :
FR-6603SX
MOQ :
1 PCS
Price :
Pls send request details
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/Month
Product name :
Fiber Optic Media Converter
Mode: :
Single mode , Multi mode
Standalone: :
AC 220V OR DC -48V
Type: :
XFP To SFP+
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
850nm/1310nm/1550nm
Description

SFP+ To XFP 10G OEO Optical Media Converter For Network Backbone


16slot multifunctional management system is a Ethernet and SDH transmission equipment, support 100M to 40G Multi speed business management , supports protocols like SNMP, WEB, CONSOLE and TELNET , with a strong management function , and operate easily to meet different customer's requirement.

Key Feature:

  • Supporting SFP+ to SFP+, SFP+ to XFP, XFP to XFP

    Supporting 10Gbase-SR/LR/ER/ZR/LRM to 10Gbase-SR/LR/ER/ZR/LRM

    Supporting 10Gbase LAN(10.3125 Gbps)and WAN(9.95328 Gbps)

    3R function, stable data transmission

    Short delay time when transparent transmission

    Supporting Jumbo frame

    Supporting DMI(Diagnostic Monitoring Interface) function of optical transceivers

    Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT

    Supporting PRBS31 Pattern Generator and Checker and Loopback test, precisely locating the failure, convenient for link test

    Economical management function within bandwidth

    With powerful network management function, supporting WEB and SNMP

    Supporting hot plug

    Supporting Remote management

    Easy installation with complete LED indicators for working situation

    Supporting 2U chassis (16 slots) and standalone use

Specification :

Technical Parameter:

Interface Type:

SFP+ to SFP+

SFP+ to XFP

XFP to XFP

Power Dissipation:

<6W

Operating Temperature:

0 ~ 50 ℃

Humidity:

5%~90%

Storage Temperature:

-40~ 70 ℃

Dimension:

156mm (W)×128mm(D)×32 mm(H) (standalone )

112.8mm (W)×77.2mm(D)×23 mm(H) (Card)

Ordering Information:

P/N

Description

Remark

FR-6603-SS

10G OEO Converter Card (3R)

SFP+ TO SFP+

FR-6603R-SS

10G OEO Converter 3R(Remote Standalone)

SFP+ TO SFP+

FR-6603-SX

10G OEO Converter Card (3R)

SFP+ TO XFP

FR-6603R-SX

10G OEO Converter 3R(Remote Standalone)

SFP+ TO XFP

FR-6603-XX

10G OEO Converter Card (3R)

XFP TO XFP

FR-6603R-XX

10G OEO Converter 3R(Remote Standalone)

XFP TO XFP
