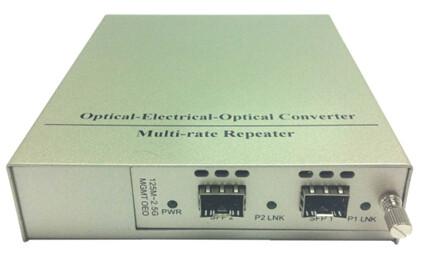

125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
Fiberroad
Certification :
ISO9001, CE, FCC, ROHS
Model Number :
FR-OEO26U-SS
MOQ :
1Pcs
Price :
Pls send request details
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000pcs/Month
Description

125Mbps ~ 2.5G SFP To SFP Multi Rate Optical Repeater Converter

125Mbps Fiber Optic Media Converter STS-12 / STM-4 for Gigabit Ethernet

SFP to SFP converter offers protocol transparent connectivity between different wavelengths or fiber modes for speed from 100Mbps to 1250Mbps. Protocol independence allows for use in broad range of applications including Fast Ethernet, Gigabit Ethernet, OC-12 and Fiber Channel.

Quick Details:

Fast Ethernet, STS-3/STM-1, ESCON/SBCON,
STS-12/STM-4, 1×Fiber Channel, Gigabit Ethernet,
2×Fiber Channel, STS-48/STM-16, 2.5 InfiniBand,

Features:

 Support 2U Rack(16 Slots )and independent use
 support network management(Web SNMP, Console),
 Support in-band management
 support ITUT prescribed DWDM/CWDM wavelength
 transmission rate:125Mbps~2.5Gbps
 Support Jumbo Frame
 Transparent Transport and very low delay
 support DMI function for SFP fiber module
 support hot plugging
 Full State Led display
 Easy installation
Technical Information

Performance Data
Technical Indexes
Access Type / Transmission Speed
Fast Ethernet
125Mbps
STS-3/STM-1
155.52Mbps
ESCON/SBCON
200Mbps
STS-12/STM-4
622.08Mbps
1×Fiber Channel
1.0625Gbps
Gigabit Ethernet
1.25Gbps
2×Fiber Channel
2.125Gbps
STS-48/STM-16
2.48832Gbps
2.5 InfiniBand or PCI Express
2.5Gbps
Interface Type
SFP to/from SFP
Transmission Distance
Up to SFP module ( Max 80Km )
Local SFP
Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters
Remote SFP
Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters
power requirement
Rack-mountable : AC 85 ～ 220V OR
DC -48V dual-supply,optional
Standalone: AC 220V OR -48V
Power consumption: ≤ 3W
Work environment
Operating Temp: 0 ～ 50 ℃
Storage Temp: -10 ～ 70 ℃
Humidity: 5%~90% ( non-condensing )
Dimension
Card : 11.5mm ( W )× 78mm ( D )
Standalone : 156mm ( W )× 128mm ( D )× 32mm ( H )

Order Informations

P/N

Description

Remark

FR-OEO26C-SS

125M~2.5G SFP to SFP Converter Card

SFP TO SFP

FR-OEO26U-SS

125M~2.5G SFP to SFP Converter (Standalone)

SFP TO SFP
