1U Management 4 Channels SFP To SFP OEO Optical Media Converter Card
1U Management 4 Channels SFP To SFP OEO Optical Media Converter Card
1U Management 4 Channels SFP To SFP OEO Optical Media Converter Card
1U Management 4 Channels SFP To SFP OEO Optical Media Converter Card
Specifications
Brand Name :
FIBERROAD
Model Number :
FR8000-OTUXXXX
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T, Western Union
Packaging Details :
Standard neutral or brand packing
Price :
Pls send request details
Delivery Time :
2-3 workdays
Supply Ability :
5000pcs/Month
Interface :
SFP from/to SFP
Data Rate :
4M~2.5Gbps
NMS :
TELNET, SNMP, WEB
Consumption :
≤15W
Description

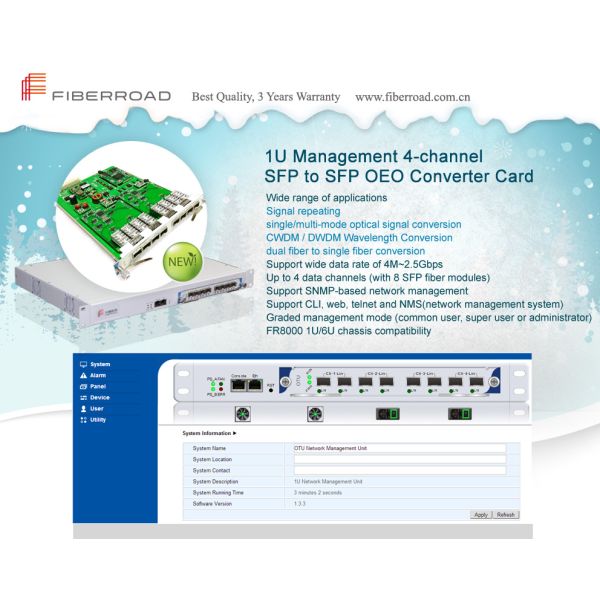

1U Management 4 Channels SFP to SFP OEO Optical Media Converter Card

FR8000-OTU1GQS2S is a multi-rate OEO converter card for optical amplification and wavelength conversion. It uses Optical-Electricity-Optical (OEO) conversion principle for the optical signal regeneration and single/multi-mode optical signal conversion to extend the network transmission distance. It can be used in CWDM / DWDM transmission system to achieve wavelength conversion, which is very helpful and cost-effective for the scenario that is short of optical resources. It is a cost-effective high-quality management system when plugged in Fiberroad 1U/6U chassis to implement device configuration, control and maintenance easily.

Optical Media Converter Card Parameters

System parameters Technical indicators
Data Rate (Gbps)

4M~2.5Gbps
Optical interface type SFP to SFP
NMS TELNET,SNMP,WEB
Size OTU Module 26.5(W)× 195(H)× 252(D)
1-slot chassis 482.6(W)x350(D)x43.6(H)
8-slot chassis 482.6(W)x360(D)x109(H)
16-slot chassis 482.6(W)x360(D)x261.6(H)
Environment Operating Temperature -10℃ ~ 60℃
Storage Temperature -40℃ ~ 80℃
Relative humidity 5% ~ 95% Non-condensing
Power Consumption ≤15W

1U Management 4 Channels SFP To SFP OEO Optical Media Converter Card

Ordering Information

Model Description Remark
FR8000-OTU1GQS2S 4-channel SFP to SFP OEO Converter Card SFP*8 optical module optional
FR6000-CH1 1U chassis 1U, 2Fans, AC/DC power module optional
FR8000-CH16 6U chassis 6U, 4Fans, AC/DC power module optional
