1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card
1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card
1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card
1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card
Specifications
Brand Name :
Fiberroad
Model Number :
FR8000-OTUXXXX
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, Western Union
Packaging Details :
Standard neutral or brand packing
Certification :
CE, FCC
Price :
Pls send request details
Delivery Time :
2-3 workdays
Supply Ability :
5000pcs/Month
Interface Type :
XFP*6 / SFP+*2 + XFP*4
Data Rate :
8.5~10.3Gbps
NMS :
TELNET, SNMP, WEB
Power Dissipation :
≤15W
Description

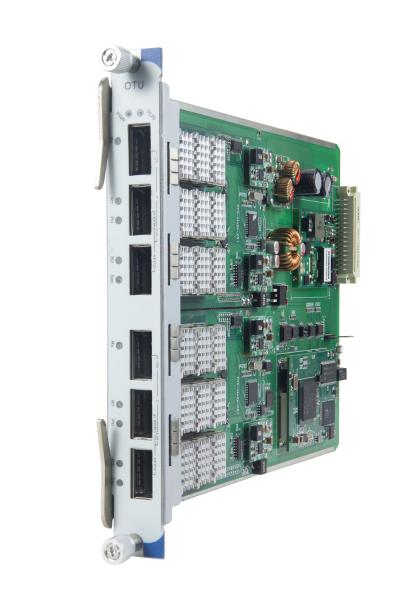

1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card

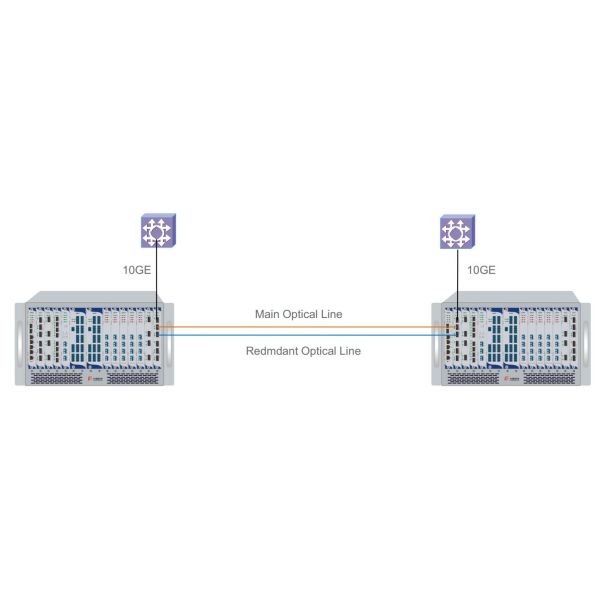

FR8000-OCP10DX2XX Converter combine ultra high-speed protocol support Dual-line side optical ports 1 + 1 hot redundancy protection. The modules enable an extremely wide range of optical infrastructure solutions including media conversion, signal repeating, lambda conversion, and Wave Division Multiplexing (WDM), especially suitable for DWDM ring network protection.

1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card

Performance Parameters

System Parameters Technical Indicators
Data Rate (Gbps)

FC: 8.5Gbps /10Gbps

SONET OC-192, STM-64 (9.953Gbps)

10G WAN (10Gbps)

10G LAN (10.31Gbps)

10G POS
Optical interface type XFP*6 / SFP+*2 + XFP*4
NMS TELNET, SNMP, WEB
Size OTU Module 26.5(W)× 195(H)× 252(D)mm
1-slot Chassis 482.6(W)x350(D)x43.6(H)mm
8-slot Chassis 482.6(W)x360(D)x109(H)mm
16-slot Chassis 482.6(W)x360(D)x261.6(H)mm
Environment Operating Temperature -10℃ ~ 60℃
Storage Temperature -40℃ ~ 80℃
Relative Humidity 5% ~ 95% Non-condensing
Power Consumption ≤15W

Dual Converter/Repeater/Transponder

1U Management 2 Channels 10G OEO Repeater Optical Channel Protection Card

Ordering Information

Model Function /Protocols Client Line
FR8000-OCP310DX2XX

Dual Multi-Rate Fiber Module

8G Fiber Channel and any 10G rates 9.9-11.3 Gbps

6xFP interfaces with 3R, Line-side 1+1 redundancy protection

 XFP*2 XFP*4
FR8000-OCP310DS2XX

Dual Multi-Rate Fiber Module

8G Fiber Channel and any 10G rates 9.9-11.3 Gbps

2xSFP+ and 4xFP interfaces with 3R, Line-side 1+1 redundancy protection

 SFP+*2 XFP*4
