1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard
1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard
1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard
1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard
Specifications
Brand Name :
Fiberroad
Model Number :
FR8000-OTUXXXX
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T, Western Union
Packaging Details :
Standard neutral or brand packing
Certification :
CE, FCC
Price :
Pls send request details
Delivery Time :
2-3 workdays
Supply Ability :
5000pcs/Month
Interface Type :
8*SFP+
Data Rate :
8.5~10.3Gbps
NMS :
TELNET, SNMP, WEB
Power Dissipation :
≤15W
Description

1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard​

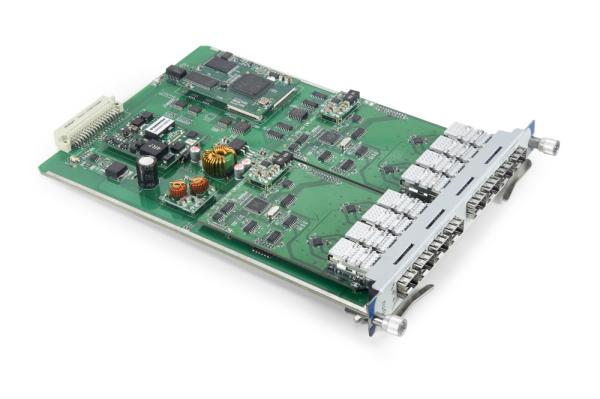

FR8000-OTU310QS2S SFP+ Quad Transponder module is a single slot module that incorporates 8 independent SFP+ based 10Gbps ports. It combines software selectable data rates and advanced Small Form-factor Pluggable (SFP+) optical transceivers supporting the latest high-speed protocols. The wide range of optical infrastructure solutions includes media conversion, signal repeating, lambda conversion, Wave Division Multiplexing (WDM), and Optical Add/Drop Multiplexing (OADM).

1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard

Performance Parameters

System Parameters Technical Indicators
Center Wavelength Compliance with ITU-I standard
Data Rate

FC: 8.5Gbps /10G

SONET OC-192, STM-64 (9.953Gbps)

10G WAN (10Gbps)10G LAN (10.31Gbps)

10G POS
Optical Interface Type 8 * SFP+
NMS TELNET, SNMP, WEB
Size OTU Module 26.5(W)× 195(H)× 252(D)mm
1-slot Chassis 482.6(W)x350(D)x43.6(H)mm
8-slot Chassis 482.6(W)x360(D)x109(H)mm
16-slot Chassis 482.6(W)x360(D)x261.6(H)mm
Environment Operating Temperature -10℃ ~ 70℃
Storage Temperature -40℃ ~ 80℃
Relative Humidity 5% ~ 95% (Non-condensing)
Power Consumption ≤15W

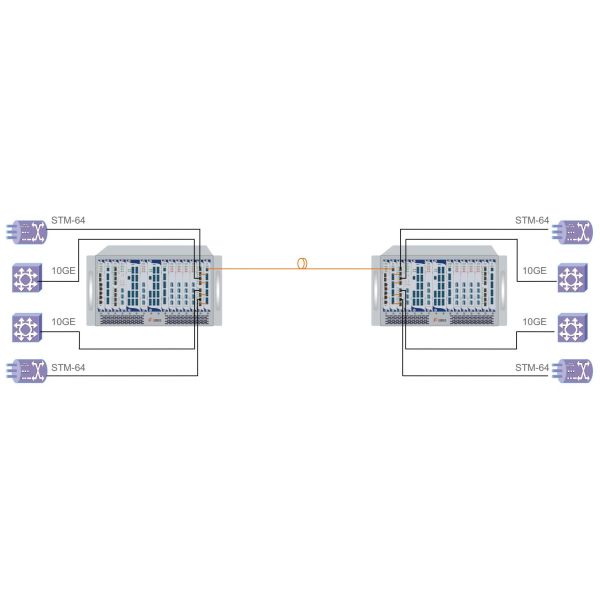

Dual Converter/Repeater/Transponder

1U Management 4 Channels SFP+ to SFP+ OEO Optical Converter Card ITU-I Standard

Ordering Information

Model Description Remark
FR8000-OTUQS2S 4-channel SFP+ to SFP+ OEO Converter Card SFP * 8 optical module optional
FR8000-CH1 1U chassis 1U, 2Fans, AC/DC power module optional
FR8000-CH16 6U chassis 6U, 4Fans, AC/DC power module optional

Product tags

sgmii sfp transceiver

,

vga to pal converter

,

x2 to sfp converter
