Gigabit Central Ethernet Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo
Gigabit Central Ethernet Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo
Specifications
Brand Name :
Fiberroad
Model Number :
FR-5M3216
Certification :
CE FCC
Place of Origin :
Shenzhen,China
MOQ :
1Pcs
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Product name :
Industirial Fiber Ethernet Switch
connector :
SC/ST/FC/LC
Data Rate FX/TX: :
1000 Base-SX/LX 10/100/1000 Base-T
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
850nm/1310nm/1550nm
Temperature :
-10 ° ~ 70 ° c
Description

Gigabit Central Ethernet Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo

FR-5M3216 is a new generation Power over Ethernet Managed switch with 16-Port 10/100/1000Base-TX and 2xGigabit Combo Fast SFP that provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

Key Features

- 16x10/100Base-TX RJ45 ports, 2x1000Base-FX Fast SFP ports
- Support Auto-MDIX, and full/half duplex self-negotiation mode
- Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
- Support 16K bytes giant frame, compatible with various extension protocol
- 8K MAC address table
- Support IEEE802.3az energy efficient Ethernet technology
- Support IPv6 Protocol
- Electric 4KV surge protection, easy to use in outdoor environment
- Complete status indicator, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- Metal case, no fan design
- Installation method: DIN trail /Wall mounting

Dimensions

Gigabit Central Ethernet Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo

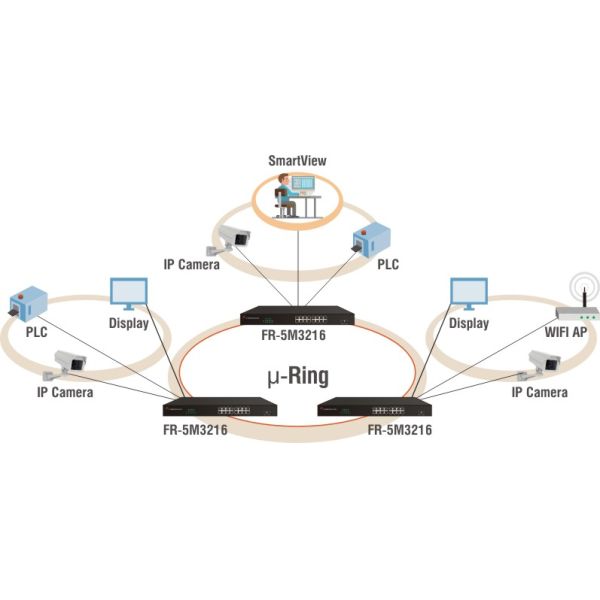

Application

Gigabit Central Ethernet Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo

Specification

Technical Parameter:
Access Method: 10/100/1000Mbps
Standard: IEEE802.3, IEEE802.3u,IEEE 802.3af/at
RJ45 Port Auto-negotiation, 10/100/1000Base-T, Full/Half Duplex, Auto-MDI/MDIX
Interface Port 8* 10/100/1000Base-TX and 2* 1000Base-FX
Wavelength: 850nm/1310nm/1550nm

Distance:

Multi-mode:550Km
Single-mode: 20/40/60/80/100/120Km

CAT5:<100m
Fiber Ports: 1000BaseFX ports (SC/ST/FC/LC connector, optional)
Flow Control: Full-duplex and Duplex Back pressure
MAC address: 8K
Indicator: Port link, ring fault/abnormity alarm indication 10M/100M Rate, run indication
DOWNLOAD PROGRAM Port: Based serial network management (RS-232), RJ45
Power Supply:

48V DC (46~50VDC) ,Redundant power input

Connector: 6 pin terminal

Overload Current Protection

Support dual power backup

Support dual power alarm input
Operating Temperature: 0 ~ +50 'C
Humidity: 5%~95% (non-condensing)
Storage Temperature: -10~ +70 'C
Dimension: 138mm x 106mm x 41mm (L x W x H)
House Protection: IP40 protection, Aluminium Alloy
Installation: DIN-Rail or wall mounting
Weight 2.5kg

Ordering Information:

Model Number Port Description
FR-5M3224 Gigabit Central Ethernet Switch,managed,24x10/100/1000Base-TX + 2xGbE Combo
FR-5M3224P Gigabit Central Ethernet PoE Switch,managed,24x10/100/1000Base-TX + 2xGbE Combo / 4xPoE
FR-5M3216 Gigabit Central Ethernet Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo
FR-5M3216P Gigabit Central Ethernet PoE Switch,managed,16x10/100/1000Base-TX + 2xGbE Combo / 16xPoE
