Mini 10/100 Base-TX to 100 Base-FX Media Converter
Mini 10/100 Base-TX to 100 Base-FX Media Converter
Mini 10/100 Base-TX to 100 Base-FX Media Converter
Mini 10/100 Base-TX to 100 Base-FX Media Converter
Mini 10/100 Base-TX to 100 Base-FX Media Converter
Mini 10/100 Base-TX to 100 Base-FX Media Converter
Specifications
Brand Name :
FIBERROAD
Model Number :
FR-2201
Certification :
CE
Place of Origin :
SHENZHEN
MOQ :
1Pcs
Payment Terms :
100% t/t in advance, Western Union, T/T
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Price :
Pls send request details
Description

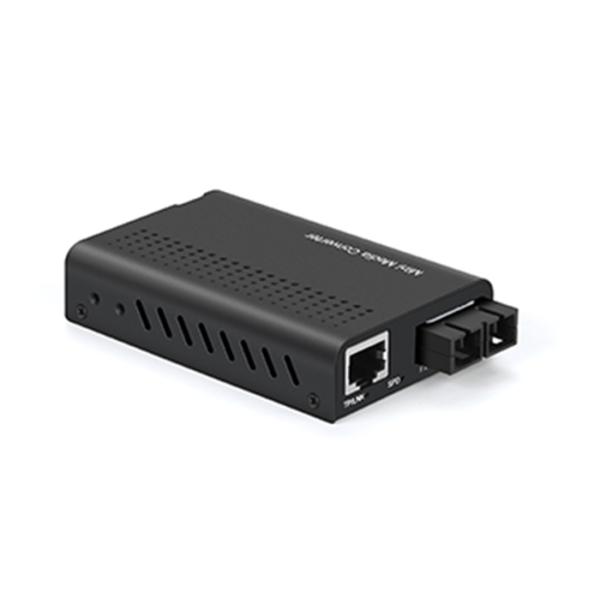

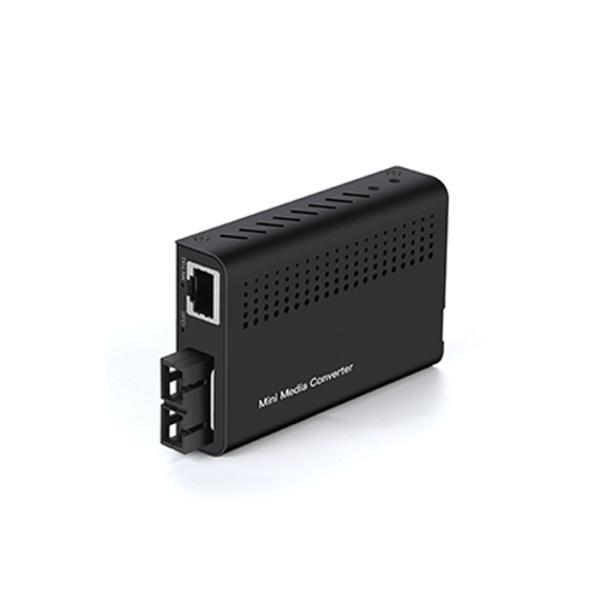

Mini 10/100Base-TX to 100Base-FX Media Converter

FR-2201 is a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. .10/100Base Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Coverter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.

Key Features

- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100Base-TX UTP to 100Base-FX fiber media convertion
- Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
- SC/FC/ST/LC optional
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Compact package size

Technical Specifications:

Data Rates:

- 10/100/1000Mbps

(IEEE802.3U IEEE802.3z 1000Base-Tx)

- 1000Mbps (1000Base-FX) or

100Mbps (100Base-FX)

Input Power Requirements:

- Input voltage ......................................... DC 5-12V

- Power consume ............................ 3 Watts maximum

Environmental Conditions:

- Operating temperature ....................... …0℃ to 40℃

- Cooling ........................................ free air convection

- Storage temperature ...................... -20℃ to +85℃

- Operating Humidity …... 90% max, non-condensing

Mechanical Specifications:

- Case Material……………….…………………..Iron

- Case Color…………………………………….Black

- Net Weight………...…………….150g approx. / unit

- Dimensions………...60 (W) x 20 (H) x 90 (L) (mm)

Do not include transceiver length

Order Information

Model Number Port Description
FR-2201 Mini 10/100Base-TX to 100Base-FX Media Converter
FR-2203 Mini 10/100/1000Base-TX to 1000Base-FX Media Converter
FR-2206 Mini 2x10/100/1000Base-TX to 100/1000Base-FX Media Converter
FR-2208 Mini 125M~1.25GBase-FX to 125M~1.25GBase-FX Media Converter

Warranty : 2 years hardware warranty

*Specifications subject to change without notice.
