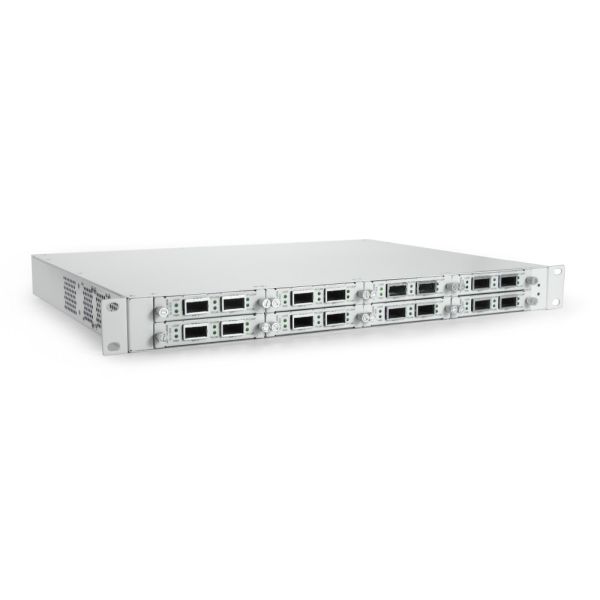

1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission
1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission
1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission
1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission
1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission
1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission
Specifications
Brand Name :
Fiberroad
Model Number :
FR-6008
Certification :
FCC Class A, CE Class A
Place of Origin :
China
MOQ :
1pc
Price :
Pls send request details
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Product name :
1U 8 Slots Chassis
Dimensions :
440mm(D)×330mm(W)×45mm(H)
Input Voltage :
100~240V AC, or -48V DC
Operate Temp. :
0~60ºC
Description

1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission

8-solts in front panel for silde-in-modules, 2-solts in back panel for power supply modules

FR6008 Series is a Centralized Network Management Platform that provides 8 slots multi-service including Managed Media Converter Card, OEO Converter Card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc.All interface cards, fans, management module Card and AC/DC Redundant Power Supply are hot swappable, allowing online field replacement. Management access can be achieved locally or Remote Standalone via network by Web, SNMP, Telnet or Console. FR6008 series together with the MUX and DEMUX can offer a complete solution for CWDM/DWDM transmission that is space-efficient and cost-effective.

Network SNMP Management Media Converter Key Features

- Muti management access Telnet, Web, SNMP, CLI
- Single slot design allows more slide-in-modules to be inserted in ION Chassis
- Based on Public MIBS
- 2x10/100M Ethernet interfaces, with Cascading function
- TFTP upgrade/backup of slide-in-modules
- Support Import/Export configuration files in human readable and editable format
- Multiple community strings

Network SNMP Management Media Converter Specifications

Category 8-Slot Chassis
Client Interface 8-solts in front panel for silde-in-modules
2-solts in back panel for power supply modules
Mgmt Interface 1-solt in back panel
Unit LEDs

Power & In-Use LED’s for each power supply

(with use of optional LED module)
Dimensions 440mm(D)×330mm(W)×45mm(H)
Power Two open bays for Chassis power modules, supporting Universal Input 100~240V AC, or 48V DC The dual power supplies can function in instant Fail-Ocer Mode or Load Share Mode
Environment Operating Temperature: 0~60℃;
Humidity: 5%~95% non-condensing;
0-10,000 ft.altitude
Shipping Weight 5.25kg
Warranty 1 Year
Compliance FCC Class A, CE Class A

1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission

Dimensions

1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission

Application

1U 8 Solts Network SNMP Management Media Converter Dual Power CWDM DWDM Transmission

Ordering Information

Model Number

Port Description

FR-6008

8-solts in front panel for silde-in-modules, 2-solts in back panel for power supply modules

FR-6016

16-solts in front panel for silde-in-modules, 2-solts in back panel for power supply modules
