1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
Specifications
Brand Name :
Fiberroad
Model Number :
FR-2000-AD
Certification :
CE FCC ROHS
Place of Origin :
ShenZhen
MOQ :
1PC
Price :
Pls send request details
Payment Terms :
T/T
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Power Output :
36 Watts maximum
Output Voltage :
DC 5V
Case Material :
Iron
Input voltage :
AC 100-240V, DC 48V
Dimensions :
485 (W) x 270 (D) x 44.5 (H) mm
Net Weight :
3.2Kg
Description

1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack with Dual Power AC 220V and DC48V

Mini Fiber Optic Media Converter Introduction

The 1U 12 slots media converter rack mount chassis is specially designed for accommodating chassis-based Mini Media Converters. It is a standard 19 inch 1U height rack mount chassis which can be mounted in the standard 19-inch rack. The chassis lets you install multiple mini media converters in an equipment rack together with the network devices. This provides for space saving, and the cabling will look neat. The chassis works with its own universal AC/DC or DC/DC power supply. For maximum power availability, and optional redundant power supply is available for installation in the chassis. The configuration of active/standby power supply ensures uninterruptible operation of the system.

Mini Fiber Optic Media Converter Technical Specifications

Power Requirements Mechanical Specifications
Input Voltage

AC 100~240V, 50/60Hz, 3.0~1.5A

DC 36~72V (48V typical)

 Case Material Iron
Output Voltage DC 12V Case Color Black
Power Output 36 Watts maximum Net Weight 3.2Kg approx. / unit
Environmental Conditions Dimensions 485(W) x 270(D) x 44.5(H) mm
Operating Temperature: 0℃ to 50℃ LED indicators
Storage Temperature: -20℃ to +70℃ PWR Power Supply (red)
Cooling: Brushless DC fan FAN Cooling Fan (green)
Operating Humidity: 5%~95% max, non-condensing Warranty: 2 years hardware warranty

Mini Fiber Optic Media Converter Ordering Information

P/N Description
FR-2000-AD 1U 12 Slots Mini Media Converter Rack with Dual Power AC 220V + DC 48V
FR-2000-DD 1U 12 Slots Mini Media Converter Rack with Dual Power DC 48V + DC 48V
FR-2000-AA 1U 12 Slots Mini Media Converter Rack with Dual Power AC 220V + AC 220V
FR-2000-PS220 1U 12 Slots Mini Media Converter Rack Power Supply AC 220V (Replacement )
FR-2000-PS48

1U 12 Slots Mini Media Converter Rack Power Supply DC 48V (Replacement )

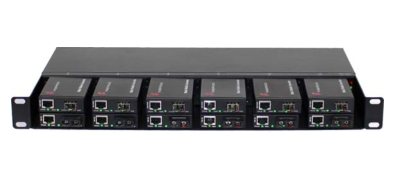

Mini Fiber Optic Media Converter Details

1U 19inch 12 Slots Mini Fiber Optic Media Converter Rack With Dual Power AC 220V And DC48V
