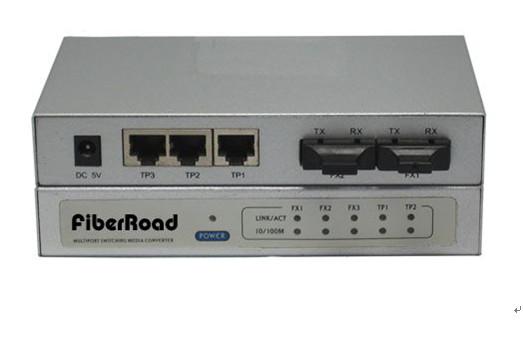

3-Port 10 / 100Base-Tx and 2-Port 100 Base-Fx Optic Fiber Switch
3-Port 10 / 100Base-Tx and 2-Port 100 Base-Fx Optic Fiber Switch
Specifications
Brand Name :
Fiberroad
Certification :
CE ISO
Place of Origin :
ShenZhen
MOQ :
1PCS
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Protocol :
CSMA/CD
Port :
3 MDI/MDIX RJ45 prots and 2 fiber port
Operating Temperature :
0 ℃ ~ 45 ℃
Storage Temperature :
-10 ℃ ~ 60 ℃
Storage Humidity :
5%~90% RH no condensing
Dimensions: :
158mm*95mm*27mm
Description

3-Port 10 / 100Base-Tx and 2-Port 100Base-Fx Optic Fiber Switch

This Fast Ethernet Optical Fiber Switch has two 100M Fx port and three 10/100M UTP ports. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

  • Support 3 port 10/100M auto-detect Half/Full duples RJ45 ports and 2 fiber port.
  • Support potr-based VLAN and MTU VLAN function.
  • Support Port Security, Broadcast Storm control, Bandwidth Control(the minimum Granularity is 128Kbps).
  • Support data packet length up to 1552 bytes.
  • Support MAC address auto-learning.
  • Support transmission by single fiber and dual fibesr.
  • External power supply.

Standards and Protocols Supported

IEEE802.3 , IEEE802.3u , IEEE802.3x IEEE802.1Q

Protocol

CSMA/CD

Port

3 MDI/MDIX RJ45 prots and 2 fiber port

Input Voltage Range

9-15V/DC

Operating Temperature

0 ℃ ~ 45 ℃

Storage Temperature

-10 ℃ ~ 60 ℃

Storage Humidity

5%~90% RH no condensing

Dimensions:

158mm*95mm*27mm
