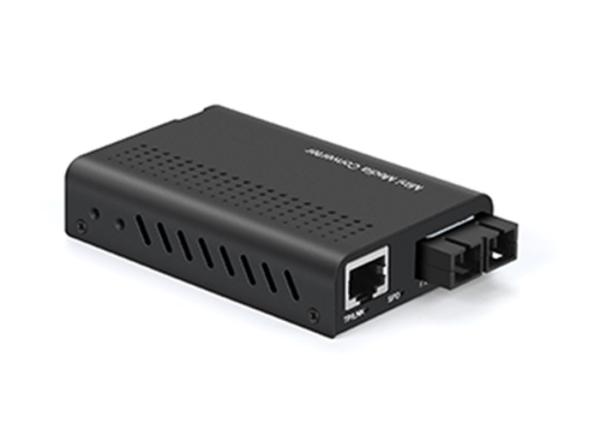

Mini 1000M Fiber Optic Media Converter MM 850nm SC 550M singlemode
Mini 1000M Fiber Optic Media Converter MM 850nm SC 550M singlemode
Mini 1000M Fiber Optic Media Converter MM 850nm SC 550M singlemode
Mini 1000M Fiber Optic Media Converter MM 850nm SC 550M singlemode
Specifications
Brand Name :
FIBERROAD
Model Number :
FR2201
Certification :
CE
Place of Origin :
SHENZHEN
MOQ :
1Pcs
Price :
Pls send request details
Payment Terms :
100% t/t in advance, Western Union, T/T
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Description

Mini 1000M Fiber Optic Media Converter MM 850nm SC 550M singlemode

Key Features

-10/100/1000Base-TX UTP to 1000Base-FX Mini fiber optic media convertion

- Support IEEE802.3U, IEEE802.3z,

1000Base-TX/FX standards

-Choice of SC, LC, BiDi or other connectors for

multimode and singlemode

- DIP switch to set different configurations

- Compact package size

The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations, the user can set the different operating mode (Force FX to 100M, pass through 9Kbit mode and LLCF, etc).

Technical Specifications:

Data Rates:

- 10/100/1000Mbps

(IEEE802.3U IEEE802.3z 1000Base-Tx)

- 1000Mbps (1000Base-FX) or

100Mbps (100Base-FX)

Input Power Requirements:

- Input voltage ......................................... DC 5-12V

- Power consume ............................ 3 Watts maximum

Environmental Conditions:

- Operating temperature ....................... …0℃ to 40℃

- Cooling ........................................ free air convection

- Storage temperature ...................... -20℃ to +85℃

- Operating Humidity …... 90% max, non-condensing

Mechanical Specifications:

- Case Material……………….…………………..Iron

- Case Color…………………………………….Black

- Net Weight………...…………….150g approx. / unit

- Dimensions………...60 (W) x 20 (H) x 90 (L) (mm)

Do not include transceiver length

Warranty : 2 years hardware warranty

*Specifications subject to change without notice.
