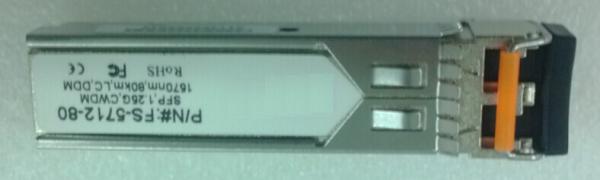

1.25G 80km SFP fiber Optical Transceiver With CWDM , Duplex LC Connector
1.25G 80km SFP fiber Optical Transceiver With CWDM , Duplex LC Connector
Specifications
Brand Name :
FiberRoad
Model Number :
FS-XX12-80
Certification :
CE
Place of Origin :
China
MOQ :
1Pc
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Description

1.25Gb/s 80km SFP Transceiver Hot Pluggable, Duplex LC Connector, +3.3V, 1550nm, DFB-LD, Single-mode, DDM

Features

  • Duplex LC Connector
  • Data Rate 1.062G to 1.25G/s
  • CWDM Wavelengths, uncooled DFB laser and pin photodetector for 40KM and 80KM
  • +3.3V single power supply
  • Power consumption less than 1W
  • Operating case temp

Standard temp: 0~+70°C

Industrial temp: -40~+85°C

  • Compliant with RoHS
Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section
Center Wavelength λc 1530 1550 1570 nm
Spectral Width σ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Output Power Pout -2 +3 dBm 1
Extinction Ratio ER 8.2 dB
Optical Rise/Fall Time tr / tf 260 ps 2
Relative Intensity Noise RIN -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)

1.25G 80km SFP fiber Optical Transceiver With CWDM , Duplex LC Connector
