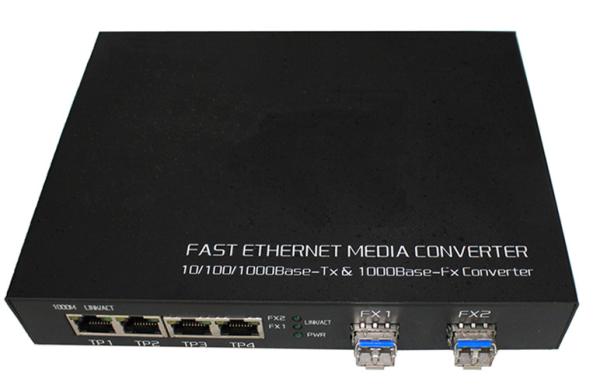

1000Base-Fx Fiber Optic Switch , fiber optic connector For industry
1000Base-Fx Fiber Optic Switch , fiber optic connector For industry
Specifications
Brand Name :
Fiberroad
Model Number :
FR-SW2GF4GT-XXXX
Certification :
CE,FCC,SGS,ISO9000
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
100% T/T advance, Western Union, L/C
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Price :
Pls send request details
Product name :
Fiber Optic Switch
Mode: :
Single mode , Multi mode
Data rate: :
10/100/1000Mbps
Data Rate FX/TX: :
100 Base-SX/LX 10/100 Base-T
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
850nm/1310nm/1550nm
Description
1000Base-Fx Fiber Optic Switches , fiber optic connector For industry

This series converters are designed to meet the massive needs for Gigabit network deployment and able to extend a copper based Gigabit network via fiber cable to a maximum distance up to 80KM. This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.

Key Features:

  • Supports 10/100/1000Base-T, 1000Base-X protocol.
  • Flow control for full duplex and half duplex.
  • Supports up to 10k byte JUMBO frame.
  • Suppots Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.
  • Supports Ports Based VLANS
  • In conformity to safety code of FCC and CE MARK.

Specifications:

Standard Protocol :

10/100/1000Base-T, 1000Base-X protocol

Connector

Four UTP RJ-45connector, Two SFP SLOTS

Operation mode

full duplex mode or half duplex mode x

TP cable

Cat5 UTP cable

Transfer fiber

multi-mode: 50/125, 62.5/125 or 100/140μm

single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm

Power supply parameter

0℃-60 ℃

Environmental temperature:

-20 ～ + 70 ℃

Humidity

5% ～ 90% ；

Dimensions

40mm x 110mm x 140mm

Ordering information :

P/N

Description

-

X

X

X

X

FR-SW2GF4GT-XXXX

4-Port 10/100/1000Base-TX

and 2-Port 1000Base-

FX Fiber Switch

S: Duplex Single-mode

M: Duplex Multi-mode

B: Simplex Single-mode

SFP: SFP Slot

3: TX 1310nm

4: TX 1490nm

5: TX 1550nm

8: TX 850nm

S: SC

F: FC

T: ST

L: LC

05: 550M

2: 2KM

20: 20KM

40: 40KM
