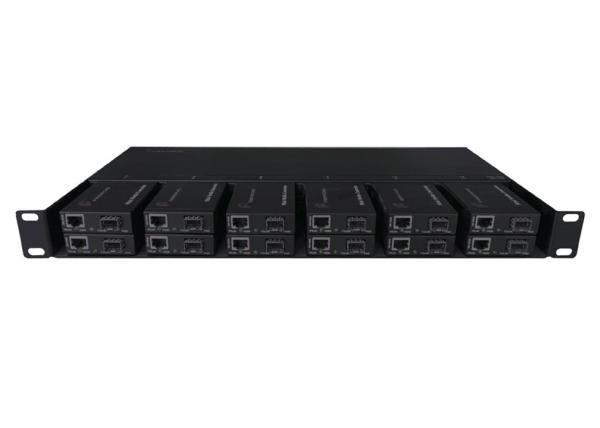

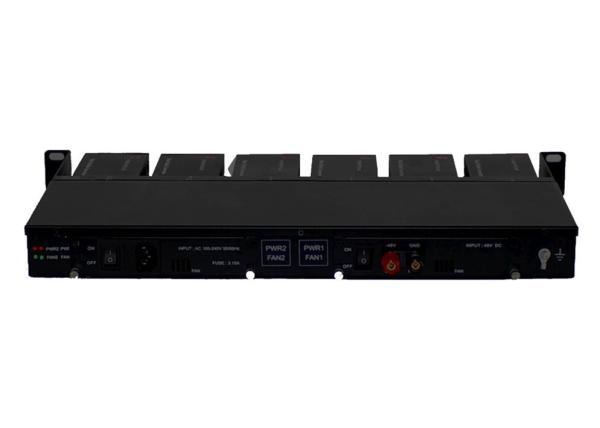

Rack Mount 12 Slot 19 Inch Mini Media Converter Rack Chassis With Dual Power DC48V
Rack Mount 12 Slot 19 Inch Mini Media Converter Rack Chassis With Dual Power DC48V
Rack Mount 12 Slot 19 Inch Mini Media Converter Rack Chassis With Dual Power DC48V
Rack Mount 12 Slot 19 Inch Mini Media Converter Rack Chassis With Dual Power DC48V
Specifications
Brand Name :
FiberRoad
Model Number :
FR-2000-DD
Certification :
ISO9000, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pc
Price :
Please send inquiry
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20000pcs per Month
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Product Name :
Mini Media Converter Rack
Dimensions :
440mm(D)×245mm(W)×45mm(H)
Input Voltage :
DC 36-72V (Typical DC48V)
Operate Temp. :
0~50ºC
Description

Rack Mount 12 Slot 19 Inch Mini Media Converter Rack Chassis with Dual Power DC48V

Fiberroad provides Mini 10/100Base Fast Ethernet / 1000Base Gigabit Fiber Media Converter and SFP Fiber Media Converter, as well as 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based Mini Media Converters. The Mini Media converter is designed for Space Saving and powered by a single internal universal power supply, eliminating the need for the multiple power connections which associated with multiple converter installations.


The 1U 12 slots media converter rack mount chassis is cost effective and supports dual power DC48V/AC220V. Fiberroad offers space saving Mini Media Conversion in the wiring closet by providing a means for rack space while reducing the number of wall outlet power connections required. The Mini Media Converters is hot-swappable, which can be removed from the rack, powered externally, and used as stand-alone units in new applications as your network needs change in the future.

Mini Media Converter Key Features

  • Suitable for standard 19 inch rack
  • Works with universal AC/DC or DC/DC power supply
  • 1U, maximum 12 slots capacity
  • Supports several module type media converters
  • Supports redundant power supply modules
  • Supports hot-swappable operating
  • Two side LED indicators (front and rear)

Mini Media Converter Specifications

Parameter

Specifications

Input Voltage

DC 36-72V (AC 100-240V 50/60Hz optional)

Output Voltage

DC 5V

Power Output

36W maximum

Operating Temperature

0~50ºC

Operating Humidity

5%~90%

Maintaining Temperature

40~70ºC

Maintaining Humidity

5% ~ 90% (non-condensing)

Dimensions

440mm(D)×245mm(W)×45mm(H)

Mini Media Converter Ordering Information

P/N

Description

FR-2000-DD

1U 12 Slots Mini Media Converter Rack with Dual Power DC 48V + DC 48V

FR-2000-AA

1U 12 Slots Mini Media Converter Rack with Dual Power AC 220V + AC 220V

FR-2000-AD

1U 12 Slots Mini Media Converter Rack with Dual Power AC 220V + DC 48V

FR-2000-PS220

1U 12 Slots Mini Media Converter Rack Power Supply AC 220V (Replacement)

FR-2000-PS48

1U 12 Slots Mini Media Converter Rack Power Supply DC 48V (Replacement)
