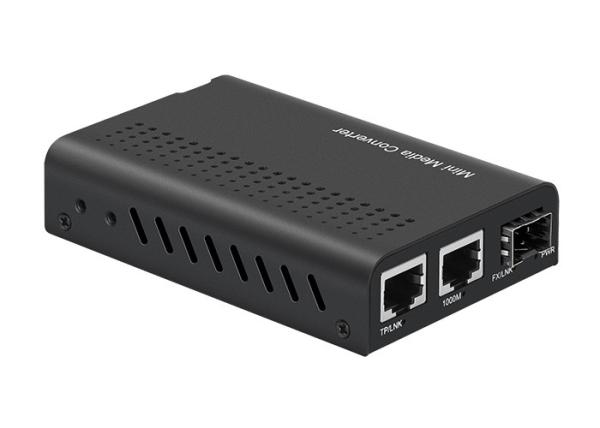

2 Ports RJ45 Optical Media Converter Device 10 / 100 / 1000 Base-TX To 1000 Base-FX
2 Ports RJ45 Optical Media Converter Device 10 / 100 / 1000 Base-TX To 1000 Base-FX
Specifications
Brand Name :
FiberRoad
Model Number :
FR-2206-SFP
Certification :
ISO9000, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pc
Price :
Pls send request details
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/Month
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Access Mode :
10/100/1000Mbps
Wavelength :
850nm/1310nm/1550nm
Ports :
1 x SFP fiber, 2 x RJ45 TP
Input Voltage :
DC 5V~12V
Description

2 Ports RJ45 Optical Media Converter Device 10 / 100 / 1000Base-TX to 1000Base-FX


The compact size of Mini is suitable for space limit fiber internet installation and ideal fiber media converter for enterprise. Plug-and-play, providing store-and-forward data transmission for fiber channel .Wide voltage from 5V to 12V


Optical Media Converter Device Key Features

  • 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter
  • Support one SFP Fiber port and two RJ-45 ports
  • Support IEEE802.3, IEEE802.3Z ,1000Base-TX/FX standards
  • SC/LC/ST/FC Optional
  • DIP switch to set different configurations
  • Compact package size


Optical Media Converter Device Specifications

Parameter

Specifications

Access mode

10/100/1000Mbps

Standard

IEEE802.3,IEEE802.3u,IEEE802.3Z,IEEE802.3x
1000Base-FX or 100Base-FX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Multi-mode: 2 km;
single mode: 20/40/60/80/100 km;
Cat-5 twisted pairs: 100m

Conversion means

Store and Forward mode or Cut-Through mode

Flow control

Full duplex: flow control;
Half duplex: back pressure

Input voltage

DC 5V~12V

Power consume

<3W

Operating temperature

0~50ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

60mm (W)×20mm (H)×90 mm (L)


PS.: *Specifications subject to change without notice.


Optical Media Converter Device Ordering Informations

P/N

Description

Remark

FR-2206-SFP

Mini 2-Port 10/100/1000Base-TX to 1000Base-FX Media Converter

SFP Slot
