10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
10 / 100 Base-TX To 100 Base-FX Rack Mount Fiber Media Converter
Specifications
Brand Name :
Fiberroad
Model Number :
FR-6101
Certification :
CE SGS FCC ISO9000
Place of Origin :
ShenZhen China
MOQ :
1pcs
Price :
Pls send request details
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Wavelength :
850nm/1310nm/1550nm
Connector :
SC,FC.ST.LC
Power Dissipation :
<3W
Operating Temperature :
0 ~ 50 ℃
Humidity :
5%~90%
Storage Temperature :
-40~ 70 ℃
Description

10 / 100 Base-TX To 100Base-FX Rack Mount Fiber Media Converter

16-slot multifunctional management system is a Ethernet and SDH transmission equipment,support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc. , supports protocols like SNMP, WEB, CONSOLE and TELNET , with a strong management function , and operate easily to meet different customer's requirement.

Rack Mount Fiber Media Converter Key Features

  • Supporting 10/100M, full/half duplex autosensing
  • Supporting 1*9 transceiver and SFP transceiver
  • Supporting IEEE802.3 ,IEEE802.3X
  • Supporting auto-MDI/MDIX
  • Max. 2046 bytes packet at store-and-forward mode; Max. 9K bytes packet at cut-through mode
  • Rate Limit function, 32Kbps
  • Supporting Loopback, precisely locating the failure, convenient for link test
  • Supporting LFP, quickly locates the failure
  • Supporting remote power off alarming
  • Economical management function within bandwidth
  • Support SFP DMI(Diagnostic Monitoring Interface) function
  • The status of 10/100M media converters with IP113A/C/F/M chipsets can be monitored and queried at the same chassis system
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation
  • With powerful network management function, supporting WEB and SNMP
  • Supporting 2U chassis (16 slots) and standalone use

Rack Mount Fiber Media Converter Specification

Technical Parameter:

Access Method:

1X10/100M RJ45

1X100Base-FX

Standard:

IEEE802.3 ,IEEE802.3u,IEEE802.3x

Wavelength:

850nm/1310nm/1550nm

Connector

SC,FC.ST.LC

Power Dissipation:

<3W

Operating Temperature:

0 ~ 50 ℃

Humidity:

5%~90%

Storage Temperature:

-40~ 70 ℃

Dimension:

156mm (W)×128mm(D)×32 mm(H) (standalone )

112.8mm (W)×77.2mm(D)×23 mm(H) (Card)

Ordering information

P/N

Description

-

X

X

X

X

FR-6101-XXXX

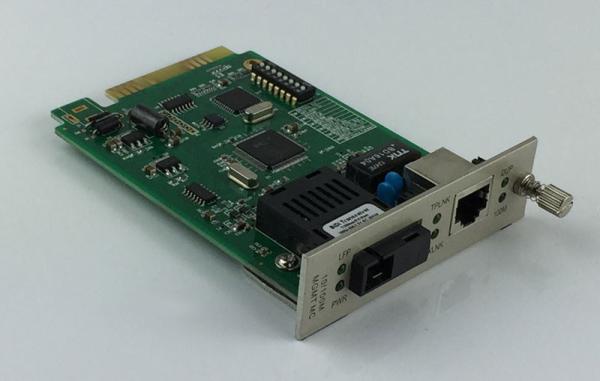

10/100Base-TX to 100Base-FX Media Converter Card

S: Duplex Single-mode

M: Duplex Multi-mode

B: Simplex Single-mode

SFP: SFP Slot

3: TX 1310nm

4: TX 1490nm

5: TX 1550nm

8: TX 850nm

S: SC

F: FC

T: ST

L: LC

05: 550M

2: 2KM

20: 20KM

40: 40KM

FR-6101R-XXXX

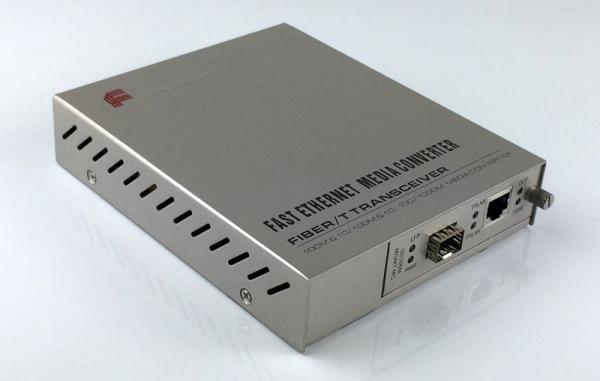

10/100Base-TX to 100Base-FX Media Converter (Remote Standalone)
