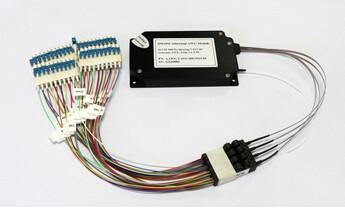

40 Channels C21-C60 Dual Fiber Athermal AWG Module With 1U Rack Mount, LC/UPC
40 Channels C21-C60 Dual Fiber Athermal AWG Module With 1U Rack Mount, LC/UPC
Specifications
Brand Name :
Fiberroad
Model Number :
FR-6000S-AAWGxx-x
Certification :
ISO9000, CE, FCC, ROHS
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Packaging Details :
Standard neutral or brand packing
Reference Passband :
± 0.1nm
Channels :
40CH
ITU Wavelength :
On ITU Grid In C-band
Channel Spacing :
100GHZ
Insertion Loss Uniformity :
Max 1.0dB
Polarization Dependent Loss :
Max 0.5dB
Price :
Pls send request details
Delivery Time :
2-3 workdays
Description

40 Channels C21-C60 Dual Fiber Athermal AWG Module With 1U Rack Mount, LC/UPC

Athermal AWG(AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks.

Key Features

  • Athermal design operates over operating temperature range
  • Large channel number
  • Compact size
  • High stability and reliability
  • Low insertion loss, high isolation increase system margin

Specifications

Parameters

Notes

Specifications

Units

Min

Max

Channels

40

Ch

Channel Spacing

100

GHz

Reference Pass-band

Relative to ITU Grid

± 0.1

nm

ITU Frequency

On ITU grid in C-band

195.90

192.00

THz

ITU Wavelength

On ITU grid in C-band

1530.334

1561.419

nm

Center Frequency Accuracy

Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels

-0.05

+0.05

nm

Insertion Loss

Maximum of the insertion loss across the ITU pass-band over all channels

6.0

dB

Insertion Loss Uniformity

Maximum insertion loss variance across all channels

1.0

dB

Ripple

Maximum of the loss variance across the ITU pass-band over all channels

0.75

dB

1dB Bandwidth

1dB from min Insertion Loss, full width, average polarization

0.36

nm

3dB Bandwidth

3 dB from min Insertion Loss, full width, average polarization

0.51

nm

Adjacent Channel Isolation

Ratio of peak transmission to the maximum transmission over both adjacent pass-bands

25

dB

Non-Adjacent Channel Isolation

Ratio of peak transmission in channel pass-bands to maximum transmission over all non-adjacent pass-bands

30

dB

Total Crosstalk

Ratio of power in channel to power in all other pass-bands

21

dB

Polarization Dependent Loss

Maximum ratio of transmissions over all polarization states, over the ITU pass-band

0.5

dB

Return Loss

40

dB

Polarization Mode Delay (PMD)

In Reference Passband over all channels

0.5

ps

Chromatic Dispersion

In Reference Passband over all channels

-20

20

ps/nm

Order Information

P/N

Description

x

x

X(Channel Spacing)

FR-6000S-TAWGxx-x

Hot-type AWG

32=32CH

40=40CH

48=48CH

S:unidirectional

(single fiber Bidirectional)

(Nil):two-fiber unidirectional

25G

50G:

100G

FR-6000S-AAWGxx-x

Athermal AWG
