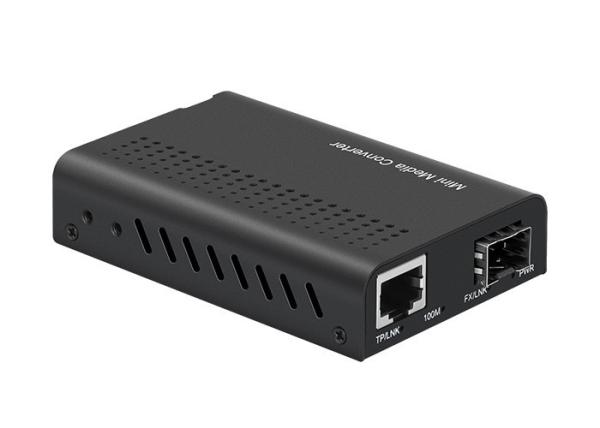

10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
10/100 Base -TX To 100 Base -FX Fiber Media Converter With DIP Switch , Full Duplex
Specifications
Brand Name :
FiberRoad
Model Number :
FR-MC12UD-XXXX
Certification :
CE / ROHS
Place of Origin :
Shenzhen China
MOQ :
1PC
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Product Name :
Fast Fiber Optic Media Converter
Mode :
Single Mode , Multi Mode
Data Rate :
10/100M
Port :
1-Fx to 1-RJ45
Wavelength :
850nm/1310nm/1550nm
Buffer Size :
1Mbit
MOQ :
1PC
Description

10/100Base-TX to 100Base-FX Fiber Media Converter With DIP Switch, Full Duplex

External power supply media converter can interconvert electrical signals of 10Base-T and 100Base–TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120 km via fiber optical cable.

Fiber Media Converter Features:

  • 10/100Mbps auto-sensed, facilitating network upgrade
  • Built-in efficient switching core to implement flow control and reduce broadcast packets
  • Full-duplex and half-duplex auto-sensed
  • Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
  • Supporting half /full-duplex of FX.
  • DIP switch to set different configurations (LFP)
  • Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission.
  • Supporting the transmission of 100Base-FX , compatible with other devices
  • Supporting low-time lag transmission
  • Supporting the transmission of extra-long packets up to1600 bytes
  • Extremely low power consumption (less than 3W), reliable and stable performance


Fiber Media Converter Technical Parameter:

Parameter Specifications
Access mode 10/100Mbps
Standard IEEE802.3, IEEE802.3u, IEEE802.3x ,100Base-FX
Wavelength 850nm/1310nm/1550nm
Transmission distance Multi-mode: 2 km;
single mode: 20/40/60/80/100/120 km;
Cat-5 twisted pairs: 100m
Conversion means Store and Forward mode or Cut-Through mode
Flow control Full duplex: flow control;
Half duplex: back pressure
Input voltage DC 5V
Power consume <3W
Operating temperature 0~50ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing
Dimensions 71mm (W)×94mm (D)×26 mm (H)


Ordering Information:

P/N Description - X X X X
FR-MC12U-XXXX 10/100Base-TX to 100Base-FX Media Converter S: Duplex Single-mode
M: Duplex Multi-mode
B: Simplex Single-mode
SFP: SFP Slot		 3: TX 1310nm
4: TX 1490nm
5: TX 1550nm
8: TX 850nm		 S: SC
F: FC
T: ST
L: LC		 05: 550M
2: 2KM
20: 20KM
40: 40KM
FR-MC12UD-XXXX 10/100Base-TX to 100Base-FX Media Converter (Support DIP Switch)
