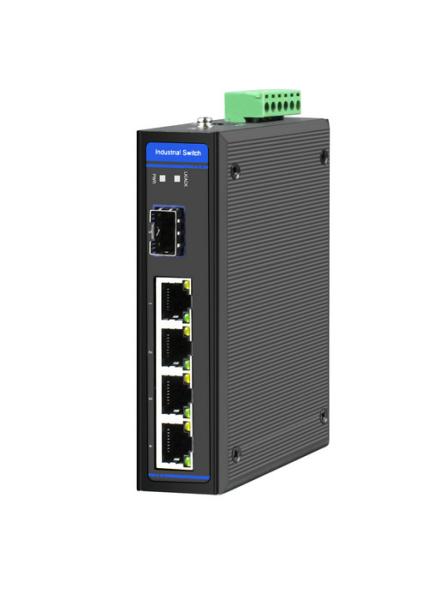

4 Port Industrial Media Converter 4x10/100/1 OOO Base-TX + 1x100/1000 Base-FXSFP
4 Port Industrial Media Converter 4x10/100/1 OOO Base-TX + 1x100/1000 Base-FXSFP
Specifications
Brand Name :
Fiberroad
Model Number :
FR-7N3104
Certification :
CE ROHS
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Name :
Industrial Media Converter
RJ45 Port and Speed :
1x10/100/1OOOBase-TX
Fiber Port and Speed :
1x100/1OOOBase-FX SFP
Port :
4 Port
Transmission Mode :
Store and Forward (full/half duplex mode)
POE :
Support
Description

4 Port Industrial Media Converter 4x10/100/1 OOO Base-TX + 1x100/1000 Base-FXSFP

Industrial Media Converter Brief introduction

FR-7N3104 is a new generation Industrial Media Converter with 4-Port 10/100/1 OOOBase-TX and 1-Port 100/1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The Industrial Media Converter complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
FR-7N3104 can offer redundantmechanismsforcritical applications that need always-on connections. It can also operate either at standard operating temperature range -40to75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Industrial Media Converter Features


> 4x10/100/1 OOOBase-TX, 1x100/1 OOOBase-FX SFP
> Support Auto-MDIX, and full/half duplex self-negotiation mode
> Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
> Support 10Kbytes giant frame, compatible with various extension protocol
> 4K MAC address table
> Support IEEE802.3az energy efficient Ethernet technology
> Support IPv6 Protocol
> Electric 8KV surge protection, easy to use in outdoor environment
> Complete status indicator, working state at a glance
> Power input polarity protection design, no worry about wrong operation
> Metal case, no fan design
> Installation method: DIN trail /Wall mounting

Gigabit Ethernet Media Converter Parameters

Industrial Media Converter Parameters

Physical Port
RJ45 Port and Speed 1x10/100/1OOOBase-TX
Fiber Port and Speed 1x100/1OOOBase-FX SFP
Parameters

Ethernet Standards

 IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1QIEEE1588
Packet Buffer 1M
Maximum Packet Length Upto 10K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half duplex mode)

Exchange Property

Delay time: < 7ps

Backplane bandwidth: 10Gbps; Packet forwarding rate: 7.44Mpps

PoE (Optional)
PoE Standard 4x IEEE 802.3af/IEEE 802.3at PoE
Power Budget Max. PoE output power budget 30W
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Power Information
Power Access Mode Phoenix terminal, DC seat

Redundant Power Input

DC 9-56V

Overload Protection

 Yes

Power Reverse

 Support
Power Consumption Full-load<15W
Physical Property
Protection Grade IP40 aluminum case
Cooling Mode Natural cooling, no fan design
Dimensions 120mm x 95mm x 30mm (Lx Wx H)
Installation Mode DIN trail/waIl-mountable
Weight 380g (With PoE : 430g)
Working Environment
Operating Temperature -40°C~75°C
Operating Humidity 5%~90% non-condensing
Storage Temperature -40°C~85°C
Warranty
MTBF 500,000 hours

Defects Liability Period 3 year warranty, lifetime technical support
Certification Standard
EMC

FCC Parti 5 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8

EN61000-4-11
Vibration

IEC60068-2-6

-40~75°C High and Low Temperature Test IP40 Protection Test

Industrial Media Converter Dimensions

4 Port Industrial Media Converter 4x10/100/1 OOO Base-TX + 1x100/1000 Base-FXSFP

Order information

Model Number Port Description
FR-7N3101 Industrial Ethernet Switch, 1 x 10/100/1OOOM Base-TX + 1 x 10/100/1000M Base-FX SFP
FR-7N3101 Industrial Ethernet Switch, 2 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP
FR-7N3005 Industrial Ethernet Switch, 5 x 10/100/1 OOOM Base-TX

FR-7N3104

 Industrial Ethernet Switch, 4 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP
FR-7N3101P Industrial Ethernet Switch, 1 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP/ 1xPoE
FR-7N3102P Industrial Ethernet Switch, 2 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP/ 2xPoE
FR-7N3005P Industrial Ethernet Switch, 5x 10/100/1 OOOM Base-TX/5xPoE
FR-7N3104P Industrial Ethernet Switch, 4 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP/4xPoE
