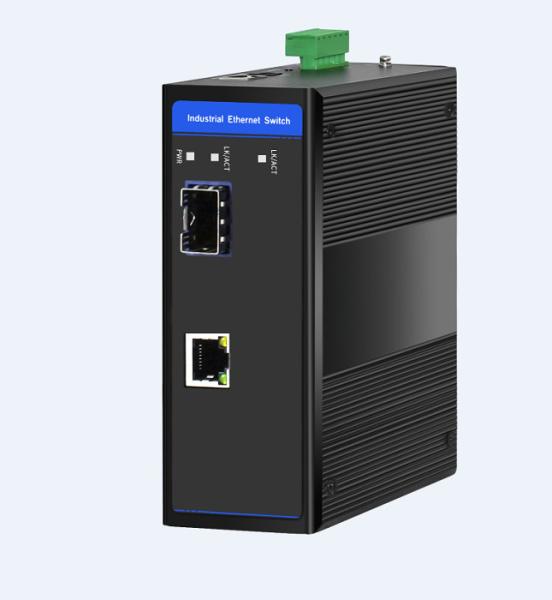

Network Manageable Media Converter 1x10/100/1 OOO Base-TX (RJ45) + 1x100/1000 Base-FX SFP
Network Manageable Media Converter 1x10/100/1 OOO Base-TX (RJ45) + 1x100/1000 Base-FX SFP
Specifications
Brand Name :
Fiberroad
Model Number :
FR-7M3101
Certification :
CE, FCC, Rohs
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Pls send request details
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Name :
Manageable Media Converter
RJ45 Port and Speed :
1x10/100/1 OOOBase-TX
Fiber Port and Speed :
1x100/1000Base-FX SFP
Packet Buffer :
4M
Maximum Packet Length :
Up to 10KBytes
MAC Address Table :
8K
Description

Network Manageable Media Converter 1x10/100/1 OOOBase-TX (RJ45) + 1x100/1000Base-FX SFP

Manageable Media Converter Brief Introduction

FR-7M3101 is a new generation industrial Managed Media Converter with 1-Port 10/100/1 OOOBase-TX and 1-Port 100/1000 Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability.

It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial converter complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

With dual power input design, FR-7M3101 can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these converters are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Manageable Media Converter Features

  • 1x10/100/1000Base-TX RJ45 ports, 1x100/1 OOOBase-FX Fast SFP ports
  • Support Auto-MDIX, and full/half duplex self-negotiation mode
  • Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
  • Support 10K bytes jumbo frame, compatible with various extension protocol
  • 8K MAC address table
  • Support IEEE802.3az energy efficient Ethernet technology
  • Support IPv6 Protocol
  • Electric 8KV surge protection, easy to use in outdoor environment
  • Complete status indicator, working state at a glance
  • Power input polarity protection design, no worry about wrong operation
  • Metal case, no fan design
  • Installation method: DIN trail /Wall mounting

Manageable Media Converter Specification

Physical Port
RJ45 Port and Speed 1x10/100/1 OOOBase-TX
Fiber Port and Speed 1x100/1000Base-FX SFP
Parameters
Ethernet Standards IEEE802.3 IEEE802.3U IEEE802.3z IEEE802.3ab IEEE802.3X IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1QIEEE1588
Packet Buffer 4M
Maximum Packet Length Up to 10KBytes
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7|js

Backplane bandwidth: 56G; Packet forwarding rate: 5.952Mpps
PoE (Optional)
PoE Standard 1x IEEE 802.3af/IEEE 802.3at PoE
Power Budget Max. PoE output power budget 30W

Manageable Media Converter Specification

LED Indicator
Power Con nect-al ways
RJ45 Link/Act: connect-always; data exchange-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Power Information
Power Access Mode Phoenix terminal, DC seat
Redundant Power Input DC 9-56V
Overload Protection Yes
Power Reverse Support
Power Consumption Full-load<10W
Power Supply 12VDC to 24VDC
Physical Property
Protection Grade IP40 aluminum case
Cooling Mode Natural cooling, no fan design
Dimensions 120mm x 90mm x 40mm (L x W x H)
Installation Mode Rail mounted in DIN standard
Weight 550g (With PoE: 600g)
Working Environment
Temperature Operating Temperature: -40°C~75°C; Storage Temperature:~40°C~85°C
Operating Humidity 5%〜90% non-condensing
It shows the temperature when it is operating
Warranty
MTBF 500,000 hours
Defects Liability Period 3 year warranty, lifetime technical support
Certification Standard
EMC

FCC Parti 5 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS) EN61000-4-4 (EFT), EN61000-4-5 (Surge) EN61000-4-6 (CS), EN61000^-8 EN61000-4-11
Vibration

IEC60068-2-6

-40~75〇C High and Low Temperature Test IP40 Protection Test
