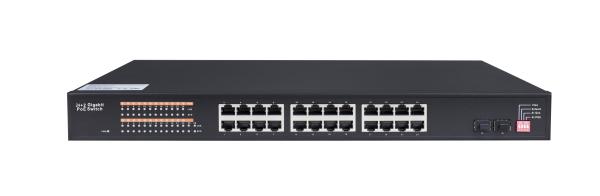

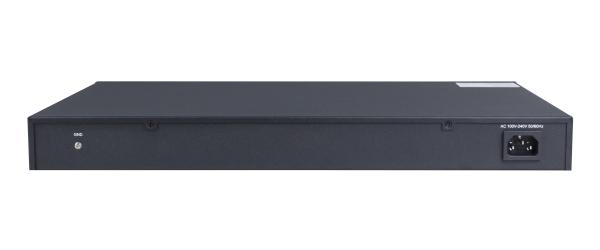

Network Ethernet PoE Switch 24 Port For Wireless AP , CCTV Products
Network Ethernet PoE Switch 24 Port For Wireless AP , CCTV Products
Network Ethernet PoE Switch 24 Port For Wireless AP , CCTV Products
Network Ethernet PoE Switch 24 Port For Wireless AP , CCTV Products
Specifications
Brand Name :
Fiberroad
Model Number :
FR-5N3224-P
Certification :
CE, FCC, Rohs
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Name :
Ethernet PoE Switch 24 Port
Port :
24 Port
Fiber Port and Speed :
2xGigabit SFP
RJ45 Port and Speed :
24x10/100/1000Base-TX
Protocol :
IPv6 Protocol
Application :
Wireless AP , CCTV Products
Description

Network Ethernet PoE Switch 24 Port For Wireless AP , CCTV Products

Ethernet PoE Switch 24 Port Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

Ethernet PoE Switch 24 Port Features

> AI QoS: Video data first, more fluent transmission

> AI VLAN: Avoid the internet storm and enhance the network ability

> AI PoE: Automatic self checking, reboot the device while find it fake dead

> Support Auto-MDIX, and full/half duplex self-negotiation mode

> Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission

> Support 10K bytes giant frame, compatible with various extension protocol

> 8K MAC address table

> Support IEEE802.3az energy efficient Ethernet technology

> Support IPv6 Protocol

> Electric 4KV surge protection

Ethernet PoE Switch 24 Port Parameters

Physical Port
RJ45 Port and Speed 24x10/100/1000Base-TX
Fiber Port and Speed 2xGigabit SFP
Parameters

Ethernet Standards

 IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1Q IEEE1588
Packet Buffer 4M
Maximum Packet Length Up to 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property

Delay time: < 7μs

Backplane bandwidth: 56Gbps; Packet forwarding rate: 47.616Mpps
PoE
PoE Standard 24x IEEE 802.3af/IEEE 802.3at PoE
Power Budget Max. PoE output power budget 30W

Ethernet PoE Switch 24 Port Specification

LED Indicator

Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Power Information
Redundant Power Input AC 100-240V 50/60Hz
Power Consumption Full-load<15W (PoE Max 300W)
Physical Property
Enclosure Metal
Dimensions 440mm x 395mm x 45mm (L x W x H)
Weight 3.55kg (With PoE: 3.6kg)

Working Environment

Operating Temperature 0℃~50℃
Operating Humidity 5%~90% non-condensing
Storage Temperature -10℃~70℃

Ethernet PoE Switch 24 Port Size

Network Ethernet PoE Switch 24 Port For Wireless AP , CCTV Products

FAQ

Q1 . What your MOQ?
A1 .1 pcs is ok,whatever how many you need,and we will also give you the best service.

Q2.What certification did you get?
A2 : Our product strictly operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS,

you can trust us.

Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.

Q4.What your common delivery way?
A4:By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.

Q5.Can we get a sample?

A5:Yes,but we need to charge for samples,we will return sample fee in later order.
