Specifications
Brand Name :
Phefon
Model Number :
FS-6L
Certification :
CE, ISO9001, ISO14001, ISO45001, ISO13485
Place of Origin :
China
MOQ :
10 Units
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
30000 Units Per Month
Delivery Time :
5-7 Working Days
Packaging Details :
Carton/pallet meet with all ways to export.
Product Name :
Ice box for medicine
Color :
White / Customize
Cooling Method :
Passive,use ice pack supply cold energy
External Dimensions :
340x 234x275 mm
Internal Dimensions :
235x145x170 mm
Features :
Portable,Insulation,Temperature Display
Insulation Type :
PU(Polyurethane) Foam
Outer & Liner Material :
PP(Polypropylene)
Temperature Range :
2-8°C /15-25℃/ -18 - -22℃
Usage :
Cold chain storage and tranpotation
OEM / ODM :
Support
Ice Packs :
Supply one set
Temperature Display :
Optional Select
Mechanical Lock :
Optional Select
Description

Travel Ice Box For Medicine Cold Chain Transport Box With Temperature Display

(Model:FS-6L/10L/12L/18L/35L)

Temperature Display Medical Cooler Box 18ltr Travel Ice Box For Medicine

Medical Cooler Box Application:

Portable vaccine cooler boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :

--Vaccines

--Insulin

--Breeding Programs

--Biopharmaceutical, Life Science and other Medical Products

--IVD products and biological specimens

--Selected fresh food, drink and dairy products

Specifications:

Items

FS-6L

FS-10L

FS-12L

FS-18L

FS-35L

Cold chain type

Standard Cooler box

Standard Cooler box

Standard Cooler box

Standard Cooler box

Standard Cooler box

Capacity

6L

10L

12L

18L

35L

Weight Empity

1.95kg ±10%

2.4kg ±10%

2.93kg ±10%

2.8kg ±10%

4.5kg ±10%

External Surface material

PP

Internal lining

material

PP

Insulation material

PU(Polyurethane) CFC FREE FOAM

Insulation Thickness

≥40mm

≥45mm

≥40mm

≥25mm

≥25mm

External Diemnsion(mm)

325*235*250

370x280x298

425x262x305

425x262x305

570x305x365

Internal Dimension(mm)

240*140*165

270x173x203

325x170x225

363x203x244

475x245x270

Lid Type & Fixings

Unremovable

Unremovable

Unremovable

Unremovable

Unremovable

No.of Ice Packs Required

fixed ice packs / One set 0.4L ice packs

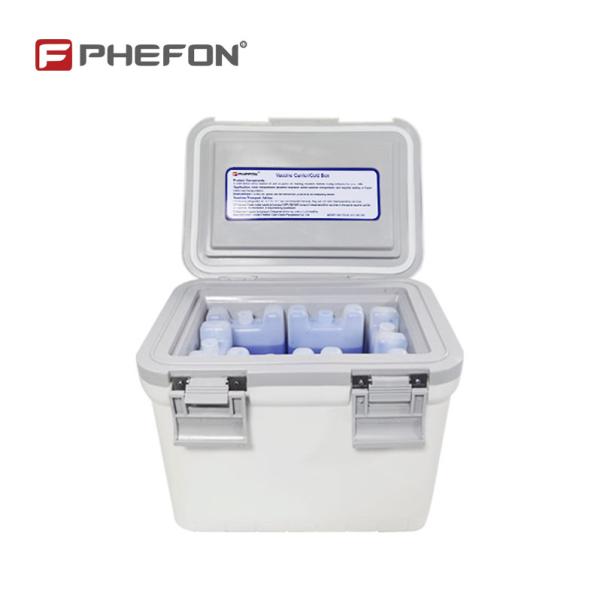

Detailed Pictures:

Temperature Display Medical Cooler Box 18ltr Travel Ice Box For MedicineTemperature Display Medical Cooler Box 18ltr Travel Ice Box For Medicine

Temperature Display Medical Cooler Box 18ltr Travel Ice Box For Medicine

Features of the Cooler Box:

Multifunctional keep cold or warm cooler box

Humanized portable handle

Fixed ice bricks design

High density PU foam

Good sealing performance

Color/logo can be customized

How to use the vaccine cooler box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).

* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.

* Place the frozen ice packs into the cooler box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.

* Close the lid.
Notes:
When not using the cooler box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.

FAQs:

1. Q: What temperature ranges can medical cooler boxes maintain?

A:The temperature range of medical cooler boxes may vary depending on the specific model, but common ranges include +2°C to +8°C , +15°C to +25°C , -10°C to -25°C for certain medications.

Advanced models may offer more precise temperature control and multiple compartments for different storage requirements.

2. Q: How long can medical vaccine cooler boxes maintain the desired temperature?

A:The duration of temperature maintenance depends on factors such as the quality of insulation, cooling mechanism, and ambient conditions. Cooler boxes with ice packs or gel packs can typically maintain temperatures for several hours, while refrigeration-based models can sustain the desired temperature for longer durations, often up to several days.

3.Q: Is OEM available?

A: Yes, customized sizes and logos are welcomed.
