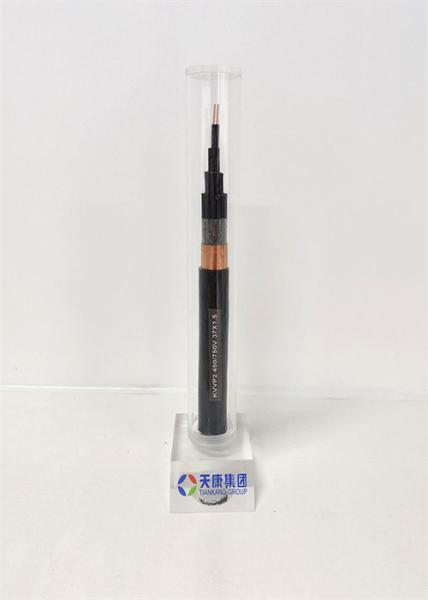

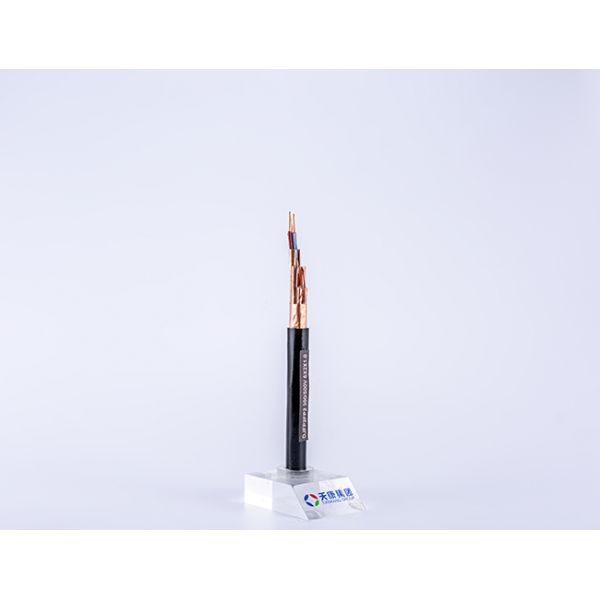

Description:

Flexing cable is used in wind turbine and fixed erection installation towers with rated voltage 1.8/3kVand below wind turbine system or similar system.

Operational performance:

• Rated Voltage UO/U:450/750V, 0.6/1kV, 1.8/3kV.
• Max.temperature of cable conductor during normal operating condition (cable rated working temperature): 70℃ for cable with voltage grade 450/750V, and 90℃ for cable with voltage grade 0.6/1kV and 1.8/3kV.
• Min bending radius of cable is 6 times that of cable diameter.
• Lowest environment temperature: -25℃ for common type cable, -40℃ for cold resistant type cable, and-50℃for bitter cold resistant type cable.

Specification:

Code Meaning in specification:

Wind power cable series code.…….….……………...FD

Flame retardant category C…………….…………………ZC

Copper conductor…………………………………(T)omitted

Ethylene propylene rubber insulation or equaled synthetic elastomer……………………………………….E

Silicone rubber or its equivalent mixture insulation ......G

Silicon rubber or equaled compound sheath ………..…...G

Polyurethane elastomer sheath (TPU)………………..U

Chlorosulfonated polyethylene rubber or equaled synthetic elastomer sheath…………………………………………H

Chloroprene rubber or equaled synthetic elastomer sheath ………………………………F

TPE sheath………………………………………………S

Technical requirement:

• Conductor

Conductor adopts class 5 soft circle annealed (tinned) copper wire according to GB/T 3956. DC resistance of conductor at 20 ℃ should confirm with GB/T 3956. Conductor surface allows moisture resistant material overlap or longitudinal wrap.

• Insulation

Insulated material should be one of extruded solid dielectrics in table. Mechanical and physical character should confirm with requirement table A.1.in appendix A.

Characteristics:

1. The maximum long-term allowable operating temperature of the conductor:90℃

2. Minimum operating temperature of the cable:-40℃(Suitable for cold regions)

3. Maximum temperature of the cable during short circuit (maximum duration not exceeding 5s):250℃

4. Minimum bending radius of the cable: not less than 6 times the outer diameter of the cable

5. Cable conductor allows tension load:15N/mm²

6. The cable has torsion resistance (partial cable), oil resistance, heat and humidity resistance (partial cable), UV resistance, ozone resistance and salt spray resistance (partial cable)
