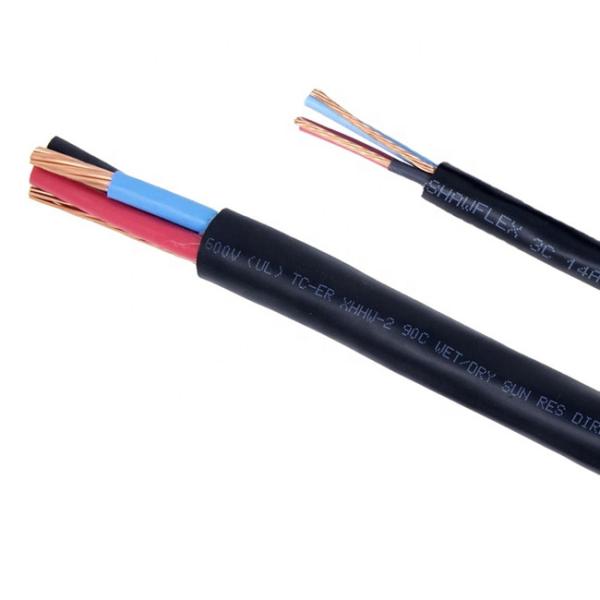

TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581
TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581
Specifications
Brand Name :
TK
Model Number :
THHN-PVC TRAY cable
Certification :
CE/ISO
Place of Origin :
ANHUI,CHINA
MOQ :
500 Meter
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100000m / Month
Delivery Time :
To be negotiated
Packaging Details :
Roll/ Wooden or steel Drum
Type :
Wind Turbine
Insulation :
PVC
Color :
Black Blue Orange Yellow Brown Red Stripe
Conductor Material :
Copper
Rated Voltage :
0.6/1kV
Sheath :
Sunlight-Resistant Polyvinyl Chloride (PVC)
Description

TC/TC-ER Wind Turbine Tray Cable High Voltage Low Temperature Wind Energy

APPLICATIONS

Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations

Also Known As:
raceway cable, underground cable, multi-conductor THHN cable, lighting cable, control cable, signal and communication circuit cable, etc.

Features:
Rated at 90°C dry, 75°C wet. Ripcord applied to all cables with jacket thickness of 60 mils or less. Provides outstanding sunlight, cold bend and cold impact resistance. Offers the smallest cable O.D. available for suitable applications. Provides long service life. Provides good oil and chemical resistance. Meets cold bend test at -25°C. Meets the crush and impact requirements of Type MC cable.

Compliances:
Industry Compliances:
- UL 66 NEC Type TFN conductors
- UL 1277 Type TC-ER for 3 or more conductors, UL File # E57179
- UL 1581
- ICEA S-95-658


Flame-retardant Polyvinyl Chloride (PVC) with clear Polyamide (nylon)
Color-coded per ICEA Method 1, Table E-2 plus alpha-numeric printed numbers (does not include white or green)

Jacket:
Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC)

Options:
Lead-free, flame-retardant, sunlight-resistant Polyvinyl Chloride (PVC)

TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581

TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581

TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581TCER Tray Wind Turbine Cables High Voltage Power Low Temperature 1kV UL 1581
