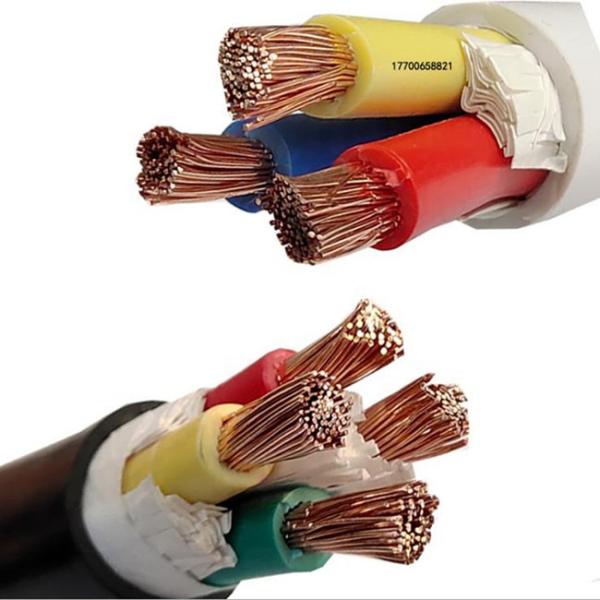

PVC Armoured Copper Control Cable 0.5mm2 5 Core Losh Zrkvvp Zrkvvr Zrkvvrp
PVC Armoured Copper Control Cable 0.5mm2 5 Core Losh Zrkvvp Zrkvvr Zrkvvrp
Specifications
Brand Name :
TK
Model Number :
LOSH
Certification :
CE/ISO
Place of Origin :
ANHUI,CHINA
MOQ :
500 Meter
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100000m / Month
Delivery Time :
To be negotiated
Packaging Details :
Roll/ Wooden or steel Drum
Type :
Low Voltage
Insulation :
PVC
Amour :
STA, SWA, AWA, ect
Core :
1, 2, 3, 4, 5
Sheath :
PVC
Conductor Material :
Copper
Description

PVC Shielded Copper Control Cable 0.5mm² x 5 Core LOSH ZRKVVP ZRKVVR ZRKVVRP Armoured

The control cable has the characteristics of moisture proof, corrosion resistance and damage prevention.
It can be laid in tunnels or cable trenches for indoor electrical installation in dry or humid environments, especially fixed installation and mobile

installation in industrial environments, such as: industrial And mining companies, energy and transportation sectors

Construction
Conductor standard of the copper wire(class 5) comply with the VDE0295/IEC60228
Insulation material Special PVC Black core with white numbers/ VDE0293-308 new color (color can be customized according to customer requirements)
Cores Cores twisted in layers
Jacket Special PVC mixture sheath
Technical data
Operating voltage 300/500V
Insulation resistance >20 Mohm × km
Min. bend radius

Mobile install : 20 × cable diameter

Fixed installation : 6 × cable diameter
Operating temperature range

Mobile installation : -5 ℃ to + 70℃

Fixed installation -40℃ + 80℃

Wire grounding ID

G = green /yellow protective conductor

X = without green / yellow protective conductor
