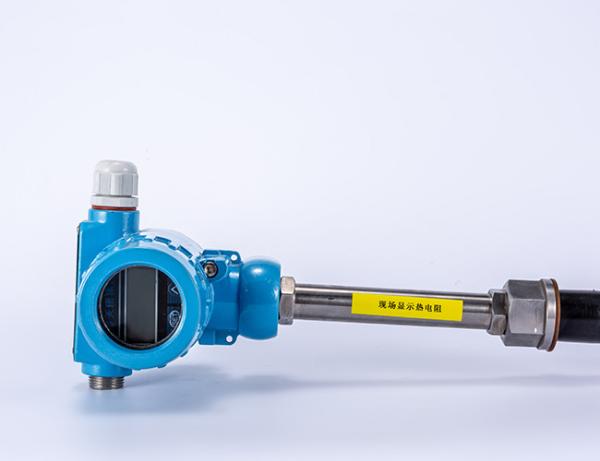

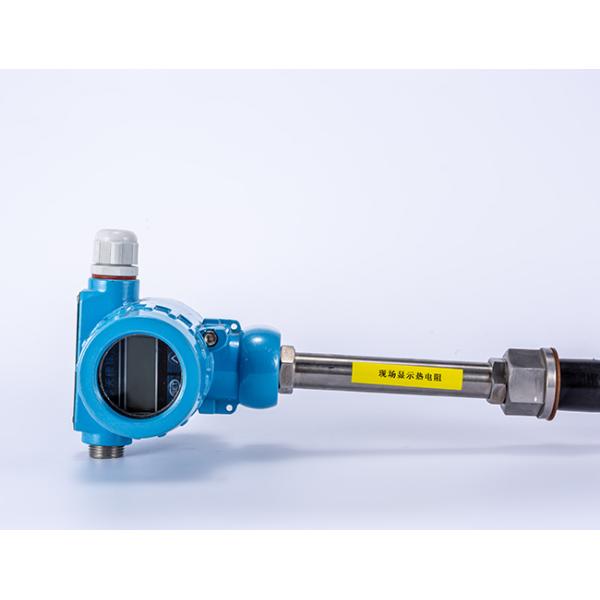

OEM Liquid Exhaust Gas Temperature Resistance Thermal Sensor 40 MPa Tiankang
OEM Liquid Exhaust Gas Temperature Resistance Thermal Sensor 40 MPa Tiankang
Specifications
Brand Name :
Tiankang or OEM
Model Number :
WZP-240S
Certification :
CE, ISO
Place of Origin :
Anhui, China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
L/C, T/T
Delivery Time :
1000 pieces per month
Packaging Details :
To be negotiated
Usage :
Temperature Sensor
Theory :
Resistance Sensor
Name :
Portable temperature sensor digital output
Measuring Media :
Liquids, gases
Pressure rating :
40 MPa
Measuring element :
Thermocouple,Thermistor
Application :
Industrial Automation
Amplifier Type :
Analog Output
Description

Liquid Gas Thermal Resistance Temperature Sensor Digital Output From China

Model
WZP-240S
Measure Range
-200 to 1600℃
Power Supply
12-32VDC
Output Signal
4-20mA, 0-5VDC, 0-10VDC optional
Precision
0.1%,0.2%,0.5%, optional
Display Method
LCD or LED display
Operation temperature
-40 to 85℃
Environment Temperature Effect
0.25%/10℃
thermometric element
Pt100,CU50,S,B,R.E,K,J,T optional
Protective tube diameter
Φ4, Φ16, Φ18, Φ20, Φ22, Φ28, Φ35, Φ40 Alternative
Connecting
without fixing device, fixed screw-thread, movable screw thread, movable flange, fixed flange GB/ANSI standard, optional
Insert length
50100150200300400500750100 or appointed
Protective tube material
iCr18Ni9Ti, ceramics, High alumina or corundum tube
Nominal pressure
≦20MPa,≦10MPa,≦4.0MPa,≦2.5MPa,
Connecting box material
Cast aluminum alloy, stainless steel, blast proof connection box
Protective level
IP65
Response Time
90s-180s,30s-90s,10s-30s,4.2s,2.4s,1.3s, optional
Environment Humidity
95%RH, Non-condensing

OEM Liquid Exhaust Gas Temperature Resistance Thermal Sensor 40 MPa Tiankang

FAQ:

Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, measuring range , accuracy, connection and other related parameters. so we can choose model and quote for you quickly.
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
