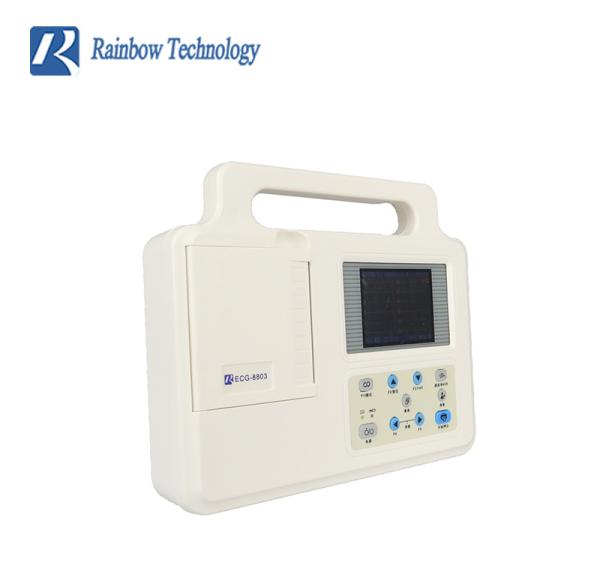

3 Channel Portable ECG Monitor Electrocardiograph Machine with Built-in Printer

Our Services

All products of our company have a warranty of 12 months. We have special engineer for after-sales service. If any questions during the use, feel free to tell us by email or telephone at any time, we will do our best to support you to keep your market reputation.

Function Features of ECG Machine

Parameters of ECG Machine

Operation mode:Manual/Auto/storage

Standard 12 leads:real-time ECG waveforms

Measure mode:Simultaneously acquisition of 12 lead,

Measure frequency:12Bit/1000Hz(1ms)

AC filter:50Hz/60Hz

EMG filter:25Hz/45Hz

Drift filter:Auto adaption

CMRR:≥95dB

Input circuit:Floating with defibrillation protection

Frequent response:0.05-160Hz(-3db)

Sensitivity:Auto/2.5/5/10/20/40(mm/mv)

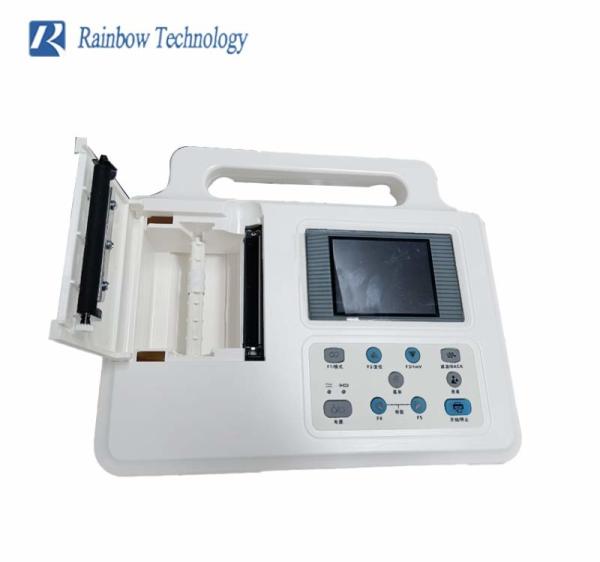

Printing:High resolution thermal printer

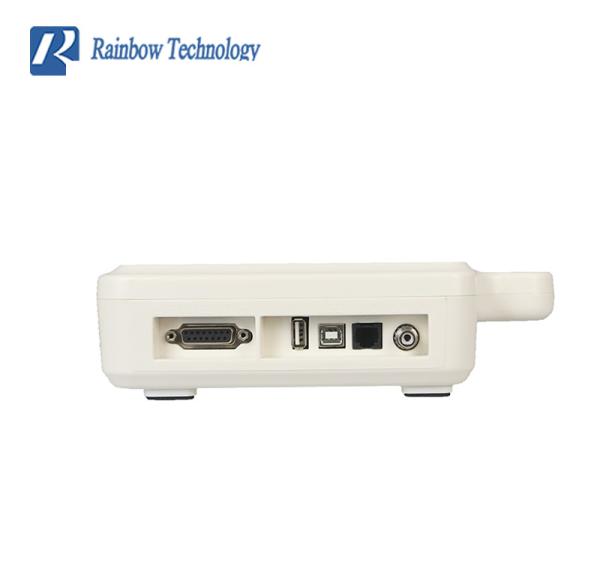

Communication interface:Standard USB/RS232

Safety standard:IEC I CF(GB9706.1-2007)

Keypad panel:can input clinic information such as patient names

Display:320*240 Graphical LCD

Internal power supply:built-in rechargeable li-ion battery for 8-hour battery life

External power supply:AC 75V-265V Auto adjustment for wide input range

Standard configuration:

ECG8803 Electrocardiograph mainframe

ECG suction bulb – one pair

ECG lead wires

AC adaptor

Grounding wire

Body/limb clamp – one set

Power line

Thermal print paper- two rolls

Print paper scroll

Operation manual
