Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance
Specifications
Brand Name :
RAINBOW
Model Number :
PM-9000 10inch
Certification :
ISO13485, FSC
Place of Origin :
Hunan, China
MOQ :
1 unit
Price :
US $220-388/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30000units/year
Delivery Time :
Within 3 days
Packaging Details :
Anti-collision film+ Carton box Carton box dimension: 32*16*23cm Gross weight: 3.5kg
Product name :
Patient monitor
Size :
10 inch
Package size :
32*16*23cm
Gross weight :
3.5kg
Application :
adult, pediatric and neonatal patient
After-sale Service :
Online technical support
Description

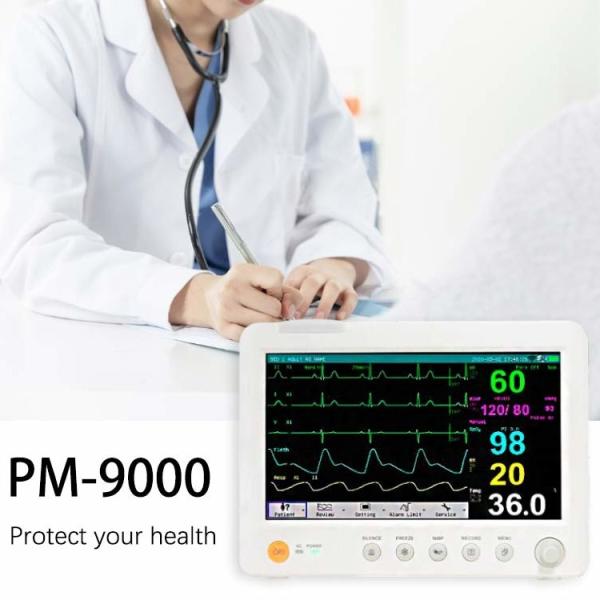

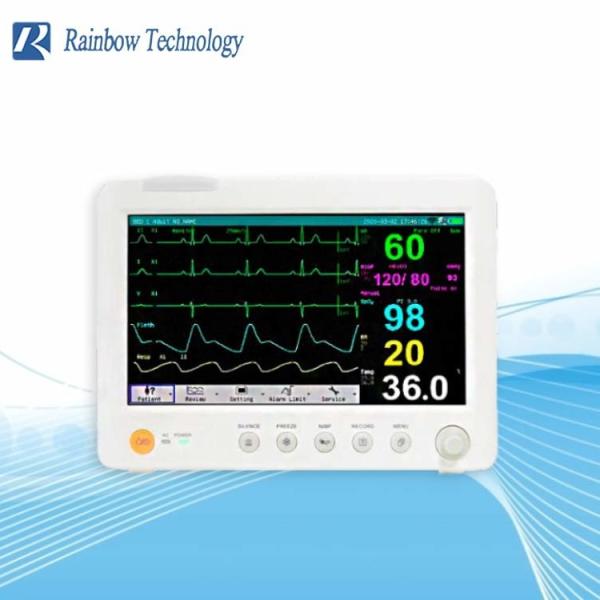

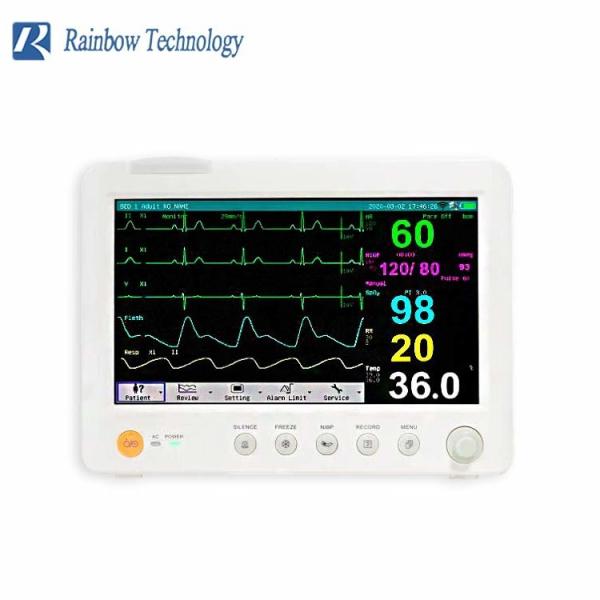

Lightweight clinical analytical instruments 6-para standard portable patient monitor with lifetime maintenance

Features:

multi-parameter patient monitor 10.1" TFT high resolution color display,enables maximum data visibility for the most critical parameters;
Real-time ST analysis,pacemaker detection,arrhythmia analysis;
720 hours list trend recall,1000NIBP data storage,
200 alarm events storage,12 hours waveform review;
anti high-frequency ESU and defribrillation protection;
full alarm features including sound, light, message;
Voltage: 100~240V, 50~60Hz
Input current : 100VA
With lithium battery

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

product parameters:


ECG:

Lead mode: 5 leads(R,L,F,N,C or RA,LA,LL,RL,V)

Lead selection : I,II,III,avR,avL,avF,V

Waveform: 3ch

Lead mode: 3 Leads(R,L,F or RA,LA,LL)

Lead selection: I,II,III

Waveform: 1ch

Gain selection: x2.5mm/mV,x5.0mm/mV,x10mm/mV,x20mm/mV,auto,deviation<±5%

Sweep speed: 6.25mm/s;12.5mm/s;25mm/s;50mm/s

Heart rate range: Adult: 15~300bpm; Neonate/pediatric:15~350bpm

Accuracy: +1bpm or +1%,whichecer is greater

Resolution: 1bpm

Sensitivity: >200(uV p-p)

ECG signal: 0.2~8mV

Different input impedance >5MΩ

Bandwidth: Surgery 1~15Hz, Monitor 0.5~35Hz, Diagnostic 0.05~100Hz

Common mode rejection ratio(CMRR)
CMRR: monitor >105dB, Operation >105dB, Diagnose >85dB

Electrode offset potential ±300mV

Pace pulse detection conditions:
Amplitude: 1 mV~10 mV, width 0.5ms~2ms, rise time: 10us~ 100us

Baseline recovery time < 3 S after Defi.



SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range 0~100%

Pluse Rate:

range: 20~300bpm

Resolution: 1bpm

Error: +3bpm



NIBP

Method: oscillometric

Operation mode : Manual/Automatic/STAT

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement range:

Range of Systolic pressure:

Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 25~140mmHg

Range of mean pressure:

Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~125mmHg

Range of diastolic pressure:

Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~115mmHg



RESPIRATION

Method: RA-LL,RA-LA

Measure inpedance range: 0.3~3.0Ω

Baseline impedance range: 200-4000Ω

Measurement range: Adult:0~120Brpm; Neonate/Pediatric:0~150Brpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm


TEMPERATURE

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution : 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

Packaging & Shipping

Standard Configration:

Item Description Quantity
1 Power line (transformer) 1
2 Cardiac conduction line 1
3 Blood oxygen probe line 1
4 Temperature probe wire 1
5 Noninvasive blood pressure cuff(Adult) 1
6 NIBP tube 1
7 ECG electrode 1

FAQ
1. who are we?
We are based in Hunan, China, start from 1997,sell to Domestic Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe Pump,Nutritional Pump

4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and wholesaler in monitor with 19-year experience. In order to meets the marketing demand, our company cooperate with the America RMS Company to release a serials of PM-9000 parameters monitor.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
