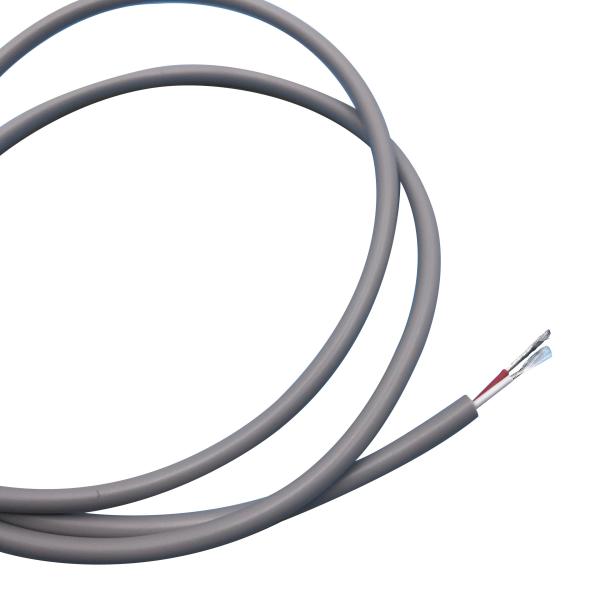

UL758 Two Core Shielded Wire 2 Conductor Shielded Cable For Medical Equipment
UL758 Two Core Shielded Wire 2 Conductor Shielded Cable For Medical Equipment
Specifications
Brand Name :
KNX
Certification :
ISO,ROHS
Place of Origin :
Shenzhen
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Delivery Time :
7-20 working days
Packaging Details :
in rolls
Material :
Silicone
Color :
Grey
Conductor :
Tinned copper
Rated Voltage :
300V
Highlight :
Two Cores Custom medical Silicone Cable
Application standard :
UL758
Description

UL758 Two Core Shielded Wire 2 Conductor Shielded Cable For Medical Equipment

Two Cores Custom Medical Silicone Cable

Product characteristics

1. High and low temperature resistance, excellent electrical insulation.

2. Excellent chemical stability, high voltage resistance, aging resistance, long service life, soft and easy to install.

3. Good acid and alkali resistance, fungus resistance, oil resistance, moisture resistance, waterproof and mildew resistance.

4. Compliance certification: RoHS, UL.

Product structure

1. Conductor: stranded with multiple strands of 0.08 tinned copper (bare copper optional),

conforming to the sixth stranded conductor of GB / t3956.

2. Insulation & sheath: high and low temperature resistant silicone rubber.

3. Inner lining: PP bag or non-woven fabric wrap buffer.

4. Color of insulation & sheath: Brown, blue, black, gray, purple, white, orange, red, yellow, green, pink,

yellow green, etc. (red and black are preferred, and other colors shall be informed in advance).

Application standard: Q / irmv2-2008, UL758

Technical parameter
Rated voltage 300 / 500V
Test voltage insulation thickness ≤ 0.5mm: 2000V; Insulation thickness ≥ 0.5mm: 2500V
Minimum bending radius fixed laying: 5D; Mobile installation: 8D (D: cable outer diameter)
Service temperature - 60 ° C - + 200 ° C
Radiation resistance 8 * 10 ^ - 7cj / kg
Flame retardancy pass the FT1 flame retardant test
Chemical resistance good oil resistance, high temperature resistance and chemical solvent resistance

UL758 Two Core Shielded Wire 2 Conductor Shielded Cable For Medical Equipment

UL758 Two Core Shielded Wire 2 Conductor Shielded Cable For Medical Equipment

FAQ

1. Can i get a sample to have a test?

Yes, free sample is ok , you only need to pay the shipping cost .

2. What is your Minimum order quantity ?

Normally is 2000m for mass production.

3. Can i have discount ?

It depends on your quantity , if your quantity is big , we can give some discount.

4. Does your company accept OEM , ODM production ?

Yes, we can , just need to tell us your detailed specifications.
