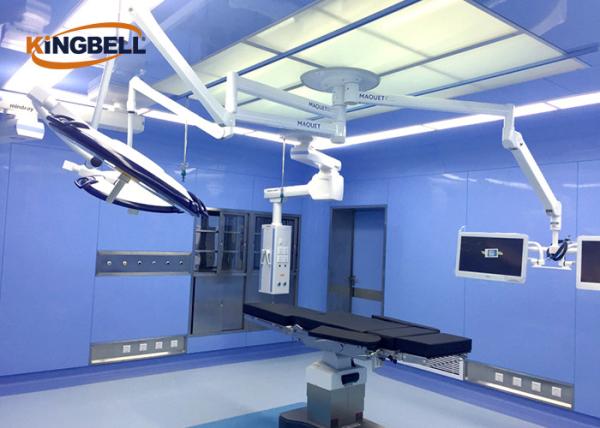

Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing
Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing
Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing
Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing
Specifications
Brand Name :
Kingbell
Model Number :
KBOT
Certification :
CQC, UL, CCC, CE
Place of Origin :
China,Shanghai
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 pieces per month
Delivery Time :
60 work days
Packaging Details :
Inner standard wrapping film , outer wooden box.
Name :
Hospital cleaning operating room
Apply for :
Cleaning room
Self-cleaning time :
≤15 min.
Size :
Customized
Warranty :
2 years
Service :
Engineer on-site
Description

Engineer on-site Hospital Cleaning Operating Room Size Color Customized

Types Of Modular OT
G-series:

  • Glass wall plate and acrylic celling plate.
  • Can be painted with beautiful photos.
  • With Keel structure at the back of glass.
  • Can be painted with different colors.
  • Easy to clean, prevent bacteria growing.
  • Strong enough to resist damaged(8mm).
  • Can keep color and photos for many years.
  • Relax for doctors and nurses.
  • Most Beautiful ,most expensive


E-series:

  • Special galvanized steel plate for wall plate and ceiling plate( Electrolytic steel plate).
  • Resistant to corrosion.
  • Resistance to deformation(1.2mm).
  • Easy to clean, prevent bacteria growing.
  • Can be painted with different colors.
  • Manufactured and painted in factory.
  • With Keel structure at the back of steel plate.
  • Most popular, a little expensive.


C-series:

  • Wall and ceiling plate with color steel plate.
  • Only little colors can be chosen.
  • Easy to install with aluminum alloy profile.
  • Easy to deformation when impact(0.6mm).
  • No need Keel structure when installation.
  • Comparatively cheap.
  • Difficult to make the circular angle between the wall and the ceiling.


A-series:

  • Wall and ceiling plate with Aluminum plastic plate.
  • Many colors is selectable
  • Pasted with plasterboard by special glue.
  • If the technological process is not so good, the aluminum plastic plate will be easy to come unglued.
  • Need Keel structure when installation.
  • Comparatively cheap.

Wall And Ceiling Plate For Corridor

  • Inorganic board for corridor. Need keel to install.
  • Color Steel Plate for corridor. Need No Keel, easy to install.
  • Inorganic board for Secondary Room.
  • Color Steel Plate for Secondary Room.


Technical Requirements For Different Air-cleaning Area

Name Grade of Air cleaning

Air changes
(times/h)

 Self-cleaning time(min)

Temperature
(℃)

Humidity
(%)

 Mininum Fresh air

Noise
dB(A)

 Minimum illumination (lx)
(m3/h·person) (Times/h)
Special OT and Lab 100 - ≤15 22-25 40-60 60 6 ≤52 ≥350
Standard OT 1,000 30-36 ≤25 22-25 40-60 60 6 ≤50 ≥350
Normal OT 10,000 18-22 ≤30 22-25 35-60 60 4 ≤50 ≥350
Primary OT 100,000 12-15 ≤40 22-25 35-60 60 4 ≤50 ≥350
Perfusion preparation room 1,000 17-20 - 21-27 ≤60 none 3 ≤60 ≥150
Storage room 10,000 10-13 21-27 ≤60 3 ≤60 ≥150
Nurse Station 10,000 10-13 21-27 ≤60 60 3 ≤60 ≥150
Prepare Room (disinfection) 10,000 10-13 21-27 ≤60 30 3 ≤60 ≥200
Pre-anesthesia room 10,000 10-13 22-25 30-60 60 4 ≤55 ≥150
Washing basin room 10,000 10-13 21-27 ≤65 - 3 ≤55 ≥150
Cleaning corridor 100,000 10-13 21-27 ≤65 3 ≤52 ≥150

Change
cloth

 100,000 8-10 21-27 30-60 3 ≤60 ≥200
Recovery room 100,000 8-10 22-25 30-60 4 ≤50 ≥200
Normal corridor 300,000 8-10 21-27 ≤65 3 ≤55 ≥150

​About us

Kingbell International Technology Development Co., Ltd. is a professional high-tech enterprise specialized in clean operation room system and central gas supply system. We register in Hong Kong and with factory in Hua Xin town of shanghai, China.
We are focused on construction of clean OTs, clean industrial plants (pharmaceutical factory, food factories, electronics factory, cosmetics factory etc.) and clean laboratories. We have professional teams including designing, budgeting, constructing, commissioning and testing, which can ensure the quality of projects. And our team members have participated in more than 100 hospital and clean workshop projects, has accumulated rich experience in this field.


Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing


Our services

  • If you are building a new hospital, we can offer your solutions of OT and medical gas pipeline system.
  • Our sales team give you the quotation and answer your any questions and doubts about products.
  • You are welcome to visit our factory at any time.
  • We will offer you the solutions of quality problems within 24hours.
  • Our after-sales service:
  • 1. Engineer goes to your hospital and provide on site customer training and guide,
  • 2. We send the free parts to you by courier and give you technical guidance via online video,
  • 3. We support you free training of products.
  • Warranty: 1-2years due to different products, and lifetime maintaining.

Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing

Certifications

Our products have passed ISO and CE certification, and are controlled from the aspects of feed inspection, production process, factory inspection and after-sales service to ensure the overall quality of the products.

Customized Size Modular Operating Room Corrosion Resistant Prevent Bacteria Growing
