Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen
Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen
Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen
Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen
Specifications
Brand Name :
Kingbell
Model Number :
KB6700A
Certification :
ISO
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Product name :
Automatic medical gas manifold
Material :
Stainless Steel
Application :
Hospital gas station
Standard :
American standard
Control type :
Automatic
Gas type :
Oxygen
Description

Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen

Specifications

Gas Service Inlet Pressure Outlet Flow Outlet Pressure Outlet Connection Inlet Connection Power
O2 20Mpa 100(3530)m3/h 0.55Mpa 3/4" loos joint(screw thread:RC 3/4) Brass tube

220V

50Hz
Air 20Mpa 100(3530)m3/h 0.8Mpa 3/4" loos joint(screw thread:RC 3/4) Brass tube 220V 50Hz
N2O 20Mpa 50(1765)m3/h 0.5Mpa 3/4" loos joint(screw thread:RC 3/4) Brass tube 220V 50Hz
CO2 20Mpa 30(1060)m3/h 0.8Mpa 3/4" loos joint(screw thread:RC 3/4) Brass tube 220V 50Hz
Inert 20Mpa 100(3530)m3/h 0.8Mpa 3/4" loos joint(screw thread:RC 3/4) Brass tube 220V 50Hz

Features

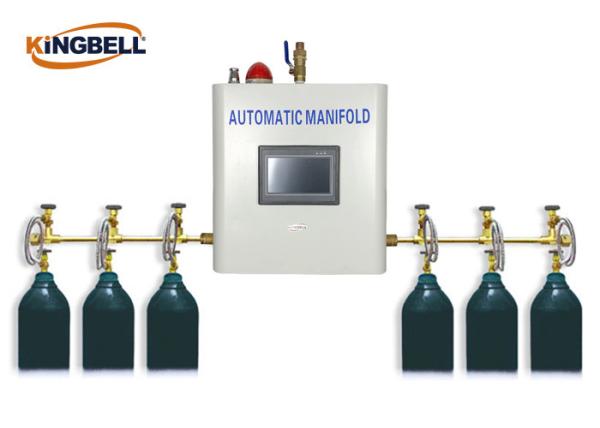

Medical gas manifolds are designed to supply the correct pressure and volume of gas from gas cylinders or tanks to a healthcare facility’s pipeline system.

The automatic manifold is designed for automatic switching between tow gas sources. This series of automatic manifold can be automatically switched without any adjustment by the operator, even if the electrical system is powered off.

  • CE certification
  • Strong and weak electrical separation (220V in the power box, busbar is 24V weak).
  • Still working when power is off.
  • Pilot operated control switching the gas path and the pressure is stable.
  • Two - level regulator and decompression device one standby one use.
  • With temperature monitoring to prevent frost and overheating.
  • PLC control, accurate pressure, stable control, output 485 signal for remote monitoring.

Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen

Automatic Medical Gas Manifold PLC Control Brass Gas Type Oxygen

​About us

Kingbell International Technology Development Co., Ltd. is a professional high-tech enterprise specialized in clean operation room system and central gas supply system. We register in Hong Kong and with factory in Hua Xin town of shanghai, China.

We are focused on construction of clean OTs, clean industrial plants (pharmaceutical factory, food factories, electronics factory, cosmetics factory etc.) and clean laboratories. We have professional teams including designing, budgeting, constructing, commissioning and testing, which can ensure the quality of projects. And our team members have participated in more than 100 hospital and clean workshop projects, has accumulated rich experience in this field.
