Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
Specifications
Brand Name :
BCI
Model Number :
HA009
Certification :
ISO13485 , CE
Place of Origin :
China
MOQ :
≥10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs/Year
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Separate package, then in outer box
Application :
Patient Monitor
Purpose :
Connected Paitient and transmit Signal
Length :
1 metre or 3 metres
Sensor :
Peadiatric finger clip
Package :
bag then in carton
Color :
Blue,Grey
Description

Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401


1. Features

Double shield structures

Copper Alloy, Additional tensile

Improve the anti-interference performance

Assure the signal accurate

Excellent Bio-compatible

The Emitter and Receiver: import sensors. The wavelength could be got to +/-1%, ensure the accuracy of the measurement.



2. Products description

1:Enriroment Temperature: 5°C-40°C;

2:Relative humidity: ≤80%;

3:Air press: 86kPa-106kPa;

4:Work supply voltage: d.c.5V, allowed +5%, -10% relative tolerance;

5:Spo2 test range:should be around 70%-100%;

6:Spo2 test accurancy:70%-100% Tolerance allowed :±3%;

7:Pulse test range:should be 30bpm-245bpm;

8:Pulse test accuracy: ±6bpm;

9:The surface temperature of the skin part which touch with sensor's LED;

10:After 8 hours continue used on certain part, the surface temperature of the skin part which touch with sensor's LED should not over 41 °C.

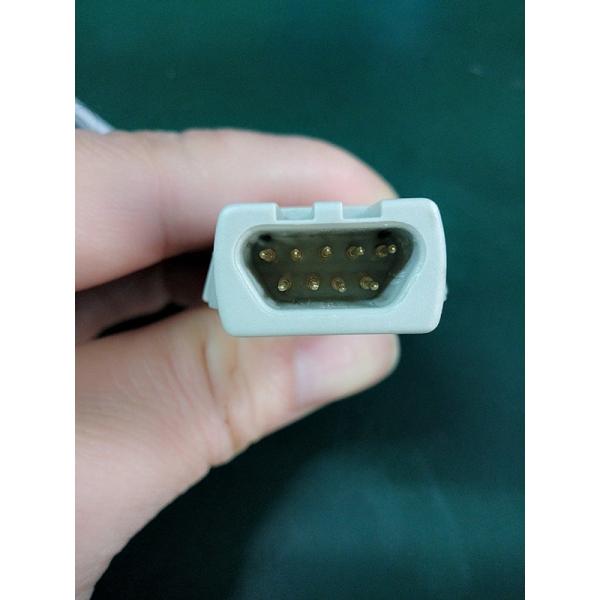

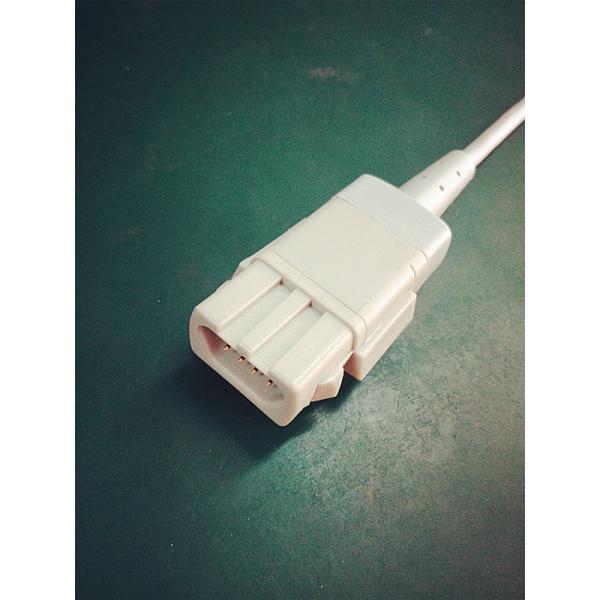

Connector:

Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401


3. Terms

Condition&Terms
1)T/T 100% payment in advance;EXW.
2)Packing:Separate package,Then in outer box.
3)Delivery leadtime:15 days upon receipt of payment.
4)Method of shipment:By air(via DHL,UPS,TNT,FedEX…);By sea.
5)Please kindly check and confirm the goods and then send us feedback.
6)If you have any problems,please don not hesitate to contact us in two days.


4. Service

1.High quality and competitive price
2.Sample order and small order are acceptable
3.We supply OEM/ODM service
4.Standard packing and timely delivery
5.Superior fiexibility and durability
6.We are a professional manufacturer in china
7.We have CE and ISO 13485
8.Technology process:Cutting,welding,molding,assembly and testing



5. Picture display


Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401Reusable Spo2 Probe DB9 9Pin Adult Finger Clip Type Compatible With 3300/3301/ 3302/3303/3304/3401
