Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins
Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins
Specifications
Brand Name :
Mindray
Model Number :
HM622
Certification :
ISO13485
Place of Origin :
China
MOQ :
≥1pcs
Price :
US$13-25/pc
Payment Terms :
T/T
Supply Ability :
100,000pcs/Year
Delivery Time :
10-15 days upon receipt of payment
Packaging Details :
Separate package, then in outer box
Type :
Snap,IEC
Material :
Plastic&TPU
Leads :
12 leads
Color :
Grey wire
Sample :
OFFER
Connector :
12 Pin
Description

Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins

1. Specification

Storage and Transport Environment: -10°C~+40°C

Operating Temperature: +5°C~+40°C

Material:TPU cable, gold plated pin

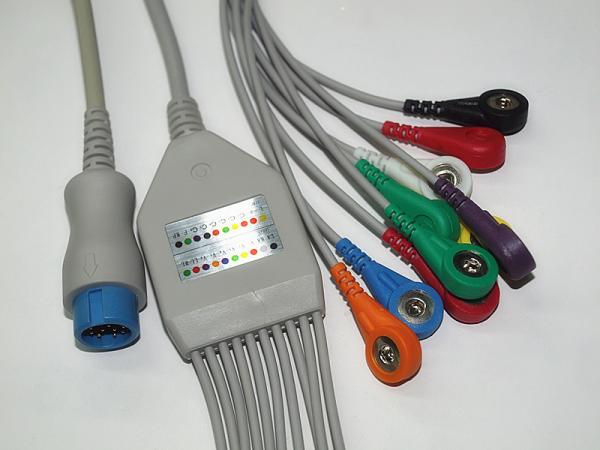

2. Figure and Dimension

Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins

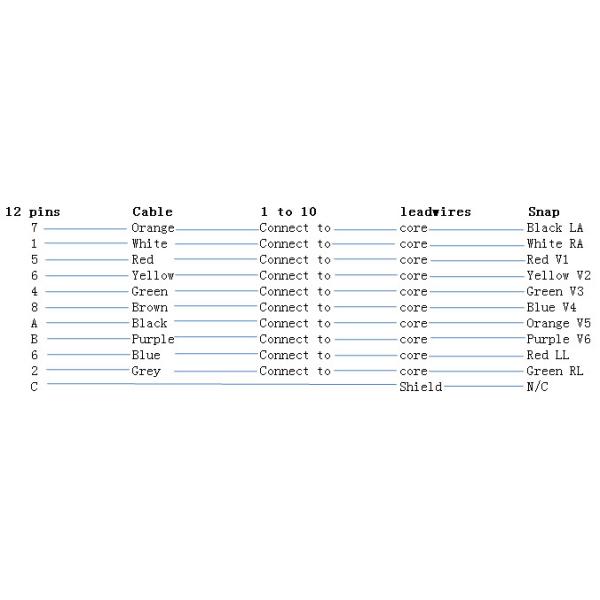

Circuit Diagram:

Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins

Connector with pins:

Mindray T8 12 Leads EKG Cable TPU Material IEC Snap Type 12 Pins

3. Packing

Wrap with transparent 185*220 PE plastic bag,each bag with 1 piece,put 1bag desiccant then put in outer carton.

4. Product advantages

Cable and wire core and core, core and shielding and sheath the insulation resistance ≥100 Ω.
For cable and wire core and core, the core and shielding, exert AC1500V ±10% (RMS), 50 hz, 1 min, the leakage current is ≤ 0.25 mA.
Suitable for which has the function of anti defibrillating ecg cable.In ecg cable DC5000V 360 J± 20% energy shock, 3 times (each discharge time is 60 s + - 5 s), the electrical resistance change is not more than ± 10%.

5. Kindly Note

1. Condition & Terms: T/T 100% payment in advance, FOB Shenzhen.
2. Method of shipment: By air (via DHL, UPS, TNT, FedEX...), By sea.
3. Delivery lead time: 10 days upon receipt of payment.
4. Packing: Separate package, then in outer box.
5. Please kindly confirm the goods and then send us feedback.　
6. If you have any problems, please do not hesitate to contact us in two days.　
7. This is sales Crystal Zhan, my mobile number is 0086-13316682642(24H Hot-line service)!　

6. About color code explaination

Classify the ecg cable is mainly through the appearance of confirmation to distinguish between different brands of monitoring instrument used in the main plug and ecg cable line is different, also can stick on the main plug or line according to the label to distinguish

Color and letter code meaning on the stickers
connected part AHA IEC
code color code color
left hand LA BLACK L YELLOW
right hand RA WHITE R RED
left foot LL RED F GREEN
right foot RL GREEN N BLACK
chest V BROWN C WHITE
