Hydraulic Medical Transport Stretcher
Hydraulic Medical Transport Stretcher
Hydraulic Medical Transport Stretcher
Hydraulic Medical Transport Stretcher
Specifications
Brand Name :
MEDIK
Model Number :
YA-TH4CS
Certification :
CE, ISO13485
Place of Origin :
Zhangjiagang, China
MOQ :
1 unit
Price :
To be confirmed according to your order
Payment Terms :
T/T, L/C, West Union
Supply Ability :
1000 units per month
Delivery Time :
15-30 days
Packaging Details :
Exportation standard carton or wooden case
Overall Size :
216*82*50-90cm
Function :
Back section adjustable, High-low, Trendelenburg ,Reverse trendelenburg
Safe Working Load :
295kg
Application :
emergency room, ICU, operating room, anesthesiology department
Description

Hydraulic Medical Transport Stretcher For Emergency Room

This medical transport stretcher is used in the emergency room, ICU, operating room, anesthesiology department and transhipment view.

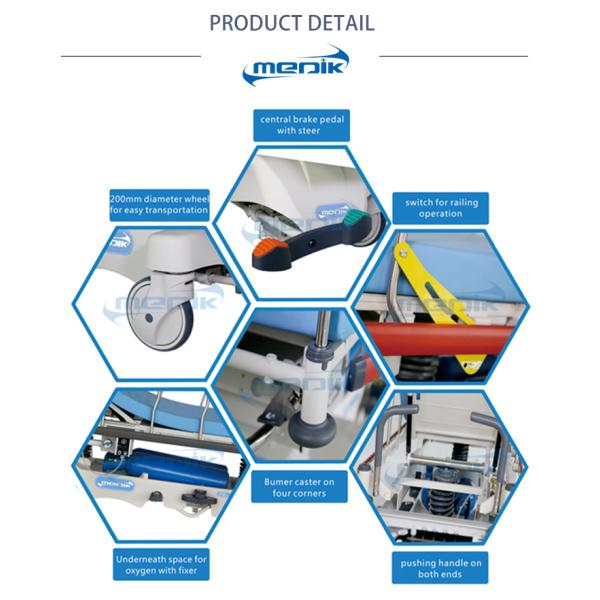

Features

  • Elegant exterior makes the stretcher as an artwork.
  • Easy to operate the stretcher due to ergonomic design.
  • All moulding parts prolong the life-span of all accessories.
  • World brand Power-packer durable hydraulic pump.
  • Big diameter wheel of 200mm for easy transportation to across the barrier steering function makes it significantly easier to steer the bed in narrow place, stabilizes the direction of track and makes it easier to turn the stretcher.
  • The wheel is retractable which makes the cleaning easier.
  • Heavy duty structure improve the loading capacity up to 295Kg.
  • Two column structure design with wide space underneath make the on bed C-arm examination accessible without moving patient.
  • Optional X-ray translucent platform for X-ray examination.

Technical Specifications:

Specification
Model YA-TH4CS
Size 216*82*50-90cm
Weight(without surface/accessories) 128kg
Safe Weight Load 295kg
Protection class IPX4
Deck Dimension 186.5*64cm
Siderails Size 137*44cm
Castors: Four 200mm castors with central locking system
Bumper castors Bumper castors on 4 corners of stretcher
Functions
High-Low: 50-90cm
Back section adjustable 0° to 85°
Trendelenburg 0° to 16°
Reverse trendelenburg 0° to 16°
Standard Accessories
Telescopic IV stand 1 piece
Pushing handle on both ends
Mattress 1 piece
Optional Accessories
Drawer for storage
Apparatus shelf


Hydraulic Medical Transport Stretcher
