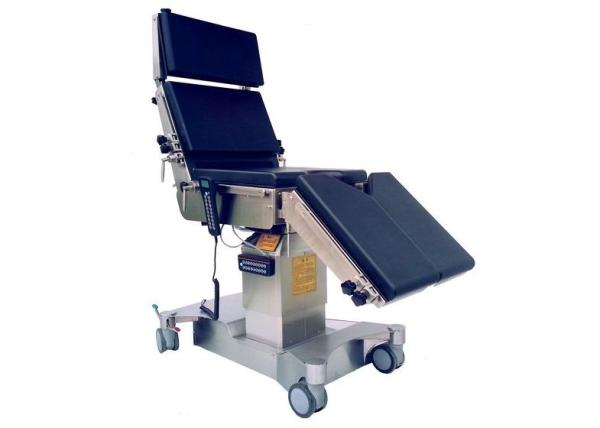

Similar AISI304 Stainless Steel Surgical Operating Table For C - Arm Photography Examination
Similar AISI304 Stainless Steel Surgical Operating Table For C - Arm Photography Examination
Specifications
Place of Origin :
Zhangjiagang, China
Brand Name :
MEDIK
Certification :
CE, ISO13485
Model Number :
YA-XD2E
MOQ :
1 unit
Price :
To be confirmed according to your order
Packaging Details :
Exportation standard carton or wooden case
Delivery Time :
15-30 days
Payment Terms :
T/T, L/C, West Union
Supply Ability :
200 units per month
Name :
Similar AISI304 Stainless Steel Surgical Operating Table
Size :
2030*555*750-1000mm
wheels :
Dia125mm
Feature :
C-arm photography examination
Motors :
8 independent motors for movements
Loading capacity :
200kgs
Description

Similar Model Operating Room Surgical Tables For C - Arm Photography Examination

Watch Video

Specification:

Model YA-XD2E
Overall size (L*W*H) 2030*555*750-1000mm
Headrest max upward and downward angle by gas spring 40°/90°
Backrest max upward and downward angle by electrically 70°/22°
Trendelenburg and Reverse-trendelenburg angle by electrically 24°
Height adjustable by electrically 750-1000mm
Lateral tilting angle by electrically ≥22°
Horizontal and longitudinal movement by electrically 350mm
Waist board lifting by mechanism system 110mm
Leg section movements by electrically(Left and right section move together or separatedly) 90°/15°/90°
Wheels with twin-wheel central braking system Dia 125mm
Loading capacity 200kgs

Key features:

  • German Trumpf similar model surgical operating table for various operations and C-arm photography examination
  • AISI304 stainless steel structure and chassis, which is easy to clean
  • Polyurethane shaped mattress which is easy to remove and clean
  • With movements of horizontal and longitudinal for C-arm photography examination
  • Eight independent motors for movements of HI-LO, back section, Trendelenburg and Reverse-Trendelenburg, Lateral tilting function, Horizontal and longitudinal movement(For C-arm examination), Leg section(separated left or right leg section, also left and right leg section as one united set), auto-contour of operating table
  • Gas spring for headrest movement
  • Mechanism system for waist board lifting
  • Leg section can be removable, then connected to orthopedic traction shelf directly
  • With lateral control system incoporated to side column, which is with blocking system for movements

Standard Accessories

  • Headrest 1pc
  • Armrest 1 pair
  • Waist support holder 1 pair
  • Shoulder support holder 1 pair
  • Leg support holder 1 pair
  • Footrest 1 pair
  • Anesthesia screen frame 1 pc
  • Body strap 1 set
  • Handset controller 1 pc
  • Lateral controller inner constructed on side of table 1 set
  • Motors 6 pcs

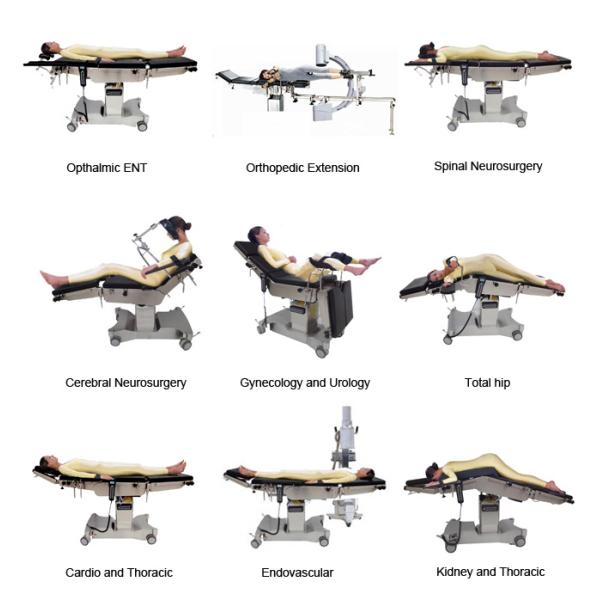

Postures:

Similar AISI304 Stainless Steel Surgical Operating Table For C - Arm Photography Examination
