Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Emergency Room Equipment Portable Medical Ventilator Machine Gas Driven
Specifications
Brand Name :
GOLGATHA
Model Number :
GGT - 10015
Certification :
CE and ISO
Place of Origin :
Guangzhou China
MOQ :
1
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
1-1000000 PCS per month
Delivery Time :
1-30 work days
Packaging Details :
Conventional packing
Type :
Breathing Apparatus
Drive :
Gas Driven
Gas Source :
Pure Air or Oxygen
Tidal Volume :
0-1500ml
Breathing Rate :
4-99/Min, 4-65/Min Under Simv
Description

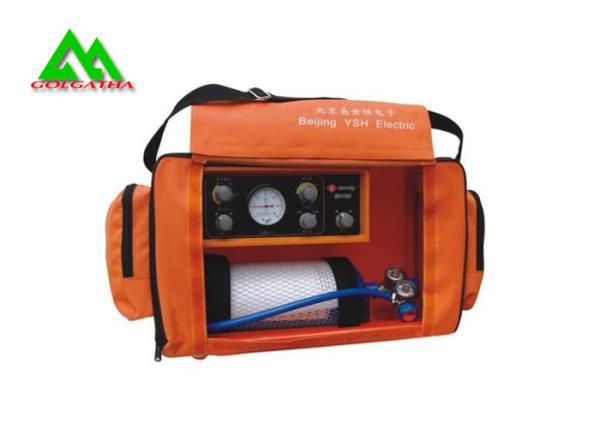

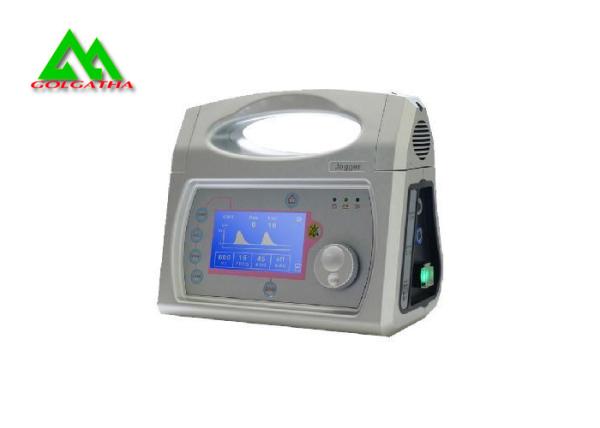

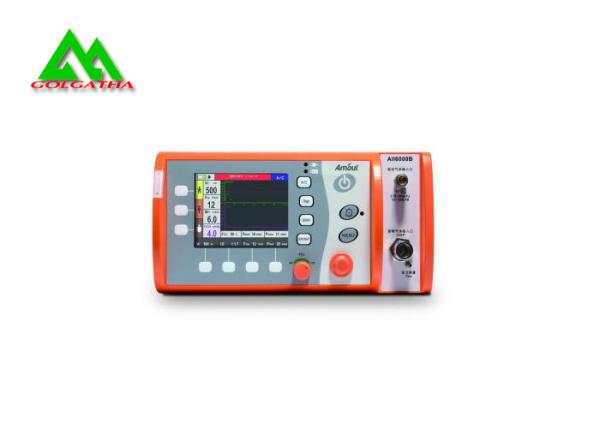

Portable Emergency Medical Ventilator

Product Description

medical equipment Portable Emergency Medical Ventilator
Packing details: 600x650x390mm, 0.14CBM, NW: 14KG, GW: 28KG

Application:


Portable ventilator supports reliable performance in daily challenge of saving people's lives, no matter where the calls take you.
The delivery the emergency transport with multi-functional usage to the patients wherever requires the emergency helps. All parameters set in one step makes every single process in easy way.

Technique Specifications
Operating Panel: English (Standard)
Drive: Gas driven
Operating: Electronically controlled
Application: Applied for child and adult. Used for respiratory depression, respiratory
paralysis and failure of emergency rescue. Available in vehicle or portable stretcher.
Display: LCD
Gas source: Pure air or Oxygen
Ventilation mode: IPPV, SIMV, A/C, SIGH, MANUAL, CPAP (optional)
Tidal volume: 0~1500ml
I:E : 3:1~1:5
Breathing rate: 4-99/min, 4-65/min under SIMV
FiO2: 48%~100%
Pressure trigger sensitivity:-2~0kPa , PEEP 0-20cmH2O (optional)
Monitoring Parameters: Tidal volume, Minute volume, Breathing rate, Airway pressure
Alarms: No VT, MV too high (low), Airway pressure too high(low), AC power off, back-up battery too low, audio alarms or prompt hints
Power: Battery, AC Power AC 220V/50Hz
Battery: ≥ 2 hours
Basic configuration requirement: Main body 1 Unit, Oxygen cylinder 3L*1 Unit, Silicon mask/circuit for medical use*1 Piece, other accessories used to insure the basic operating.
Net Weight: 3.5Kg
Dimensions: 310mm x 190mm x 115mm (L x H x W).
Reserve Condition: Temperature: -10~40degree, Relative humidity<90%
Working condition: Temperature: 5~40 degree. Relative humidity< 80%
User manual: English (standard)
ISO9001:13485

Our Advantage :


1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3: One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5: We have very experienced engineers , can help you better use our products .
