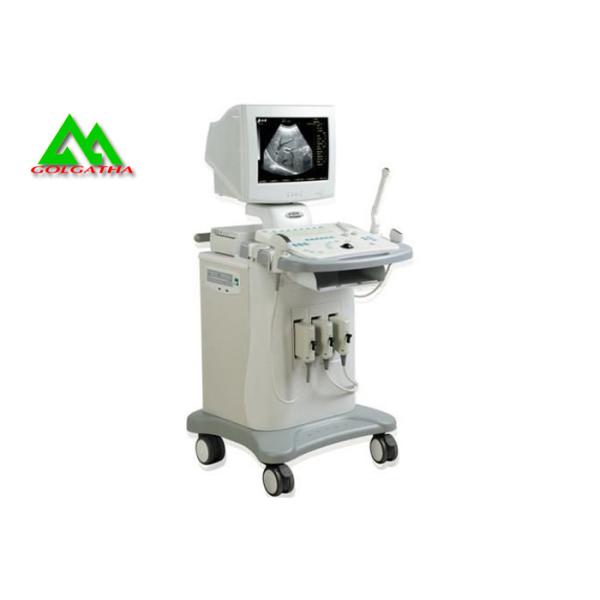

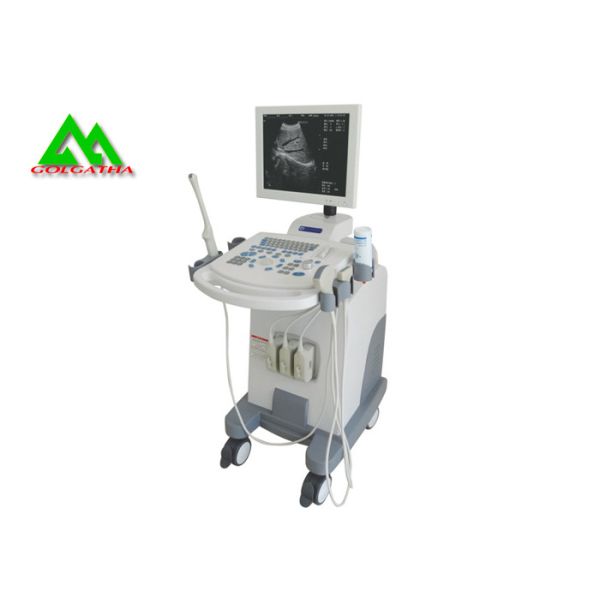

Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Full Digital Diagnostic Medical Ultrasound Equipment Trolley Ultrasound Scanner
Specifications
Brand Name :
GOLGATHA
Model Number :
GGT - 3013
Certification :
CE/ISO
Place of Origin :
Guangzhou China
MOQ :
1
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
1-10000 PCS per month
Delivery Time :
1-30 work days
Packaging Details :
Conventional packing
Probe Connector :
2
Monitor :
15 Inches
Scanning Mode :
Electronic Convex/Linear/Micro-Convex
Tgc :
8-Segment Tgc
Color :
White
Display Mode :
B, B+B, 4b, B+M, M
Description

Full Digital Ultrasound Diagnosis Equipment Trolley Ultrasound Scanner

Product Description

Main Feature

15" LCD display, environment protection
Multi-frequency probe
2 activated probe ports, easy probe switch
8-segment TGC, precise adjustment of near/far gain
Embed PC, stability, security and connectivity
Abundant diagnostic software packages, satisfying different clinical requirement
Various peripheral ports, flexible expansion solutions
Smart 3D imaging (option), vivid presentation of fetus face

Technical specifications

Safety standard IEC 60601-1, 60601-1-2, EN 60101
AC 110-220V, 50/60Hz, ±10%
Monitor 15" High resolution CRT
TGC 8 segments
Body mark 123 types
Gray scale 256
Scanning method electronic convex/linear/micro-convex
Probe electronic convex/linear, broadband, multi-frequency, THI on all probes
Clinical application General, Obstetric, Gynecology, Cardiology, Urology, Small organ, etc
Display mode B, 2B, 4B, B/M, M
Zoom continuously, real-time dynamic PIP
Image storage >50,000 frames
Cine loop Auto 512 frames
Image/video format AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
Scan angle 60-160 degrees, depending on probe
Scan depth 40mm~300mm, depending on probe
Dynamic range ≥120dB, 4-level adjustable
Image flip up/down, left/right, black/ white, 90/180/270°
Annotation date, time, name, sex, age, doctor, hospital name, etc
Peripheral port

Video, S-video, USB2.0, DICOM3.0, VGA

Standard Accessary
Main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list

Option


3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch

Our Advantage :


1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
