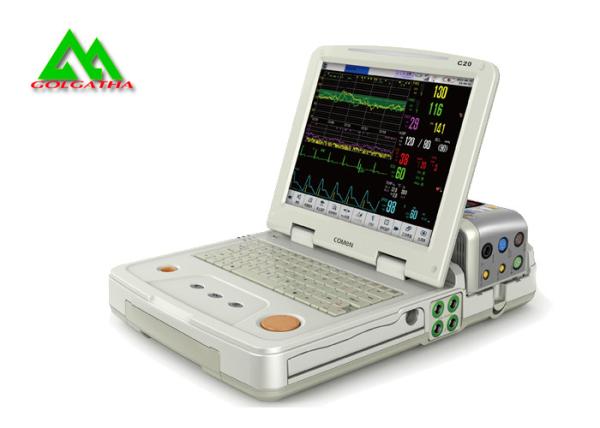

Hospital Equipment Portable Maternal and Fetal Patient Monitor

Product Description

Features Single or Twins Ultrasound transducer
Data Graph and Trend Table Review of both mother and fetal
Built-in thermal printer
Programmable alarms
Built-in Network capability for connect with central monitoring software
All the colors and looks or the parameters can be customized
Multi-face views, select focus on mother or fetal
Storage of patient information and data
Performance SpecificationsDisplay: 8.4" Color TFT
Resolution: 640x480
Display Mode: Standard View, Fetal View, Mother View
Indicator: Power indicator light, Alarm sound
Interface: Socket for connecting fetal's FHR, TOCO, and Fetal Movement
Sensor Socket for connecting mother's ECG, NIBP and SPO2 sensor.
Net Socket(RJ45) for communication cable with Central Monitoring Station Software.
Power Supply: AC 100 ~ 240V, 50/60Hz, Power < 60VA
Trend Graph: Resolution from 1s, 5s, 10s. Maximum time 96 hours.
Trend Table: Resolution from 1s, 5s, 10s. Review up to 1000 items.
Alarm: Adjustable High and Low limits. Three level audible and visual alarm.
User Configuration: All the color of parameters and waves can be set according to user's willing.
Technical specificationsMeet the requirement of IEC60601 series
Degree of Protection: BF
Type of Protection: Class II with internal electric power supply
Dimention: 92(W)x82(H)x22(D)mm
Weight: 136g(with battery)
Operation EnvironmentTemperature: 0° C~ +40° C
Humidity: 15% ~ 95%
Storage EnvironmentTemperature: -20° C~ +60° C
Humidity: 10% ~ 95%
Patient Range: Pregnant Adult
FHRUltrasound Frequency: 2MHz
Range: 50 ~ 210 bpm
Resolution: 1bmp
Accuracy: ± 2bmp
FETAL MOVEMENTManual fetal movement mark
SPO2Measurement Range: 0 ~ 100%
Resolution: 1%
Accuracy: ± 2%(70%~100%, Adult/Pediatric, non-motion)
± 3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified
Alarm Range: 0% ~ 100%
Refreshing Rate: 1s
Pulse RateMeasurement Range: 25 ~ 250 bpm
Resolution: 1bpm
Accuracy: ± 3 bpm (non-motion)
Alarm Range: 25 ~ 250 bmp
Refreshing Rate: 1s
ECGLead mode: 3-lead or 5-lead
Lead selection: I, II, III, AVR, AVL, AVF, V
HR range: 15 ~ 300 bpm
ECG Waveform: 2 channals
Accuracy: ± 2bpm or ± 2%, which is greater
S-T segment detection range: -2.0mv ~ +2.0mv
Arrhythmia analysis: 13 kinds of arrhythmia
Alarm Range: 15 ~ 300 bpm
NIBPMethod: Oscillometry
Mode: Manual/Auto/Contiuous
Measurement Range: 25 ~ 260mmHg
Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
Resolution: 1mmHg
Overpressure Protection: 300mmHg
