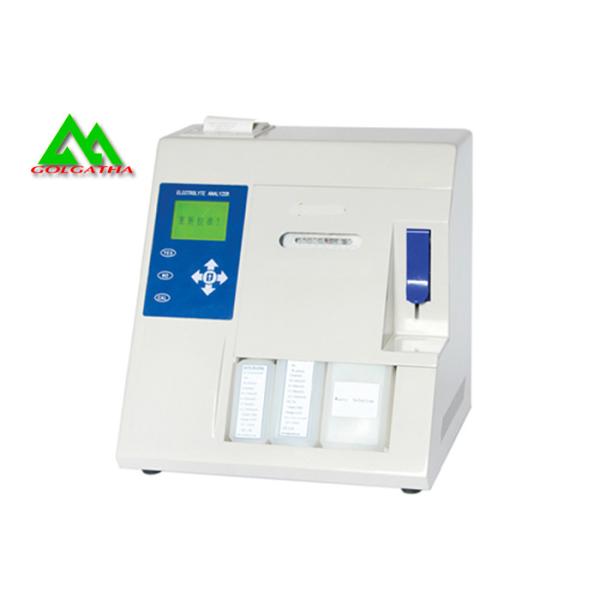

Electrolyte Analyzer

Specifications

Electrolyte Analyzer with K+, Na+ , Cl- and Ca++ andpH values,Applies ISE (Ion Selection Electrode),Serum, Whole Blood, Plasma.

Technicals

Sample: Serum, Whole Blood, Plasma, Diluted Urine

Sample Volume: 90ulTesting Time: ≤50s

Temperature: 10°C-30°C,

humidity: ≤85%

Power Supply Voltage: AC160V-245V 50±1Hz

Volume:255mm×240mm×335mm Weight: 5Kg

Packing Details : 355mm×336mm×420mm N.W5kgs G.W.8kgs

Reagents :

1. Calibration solution 500ml×3

2. Slop solution 250ml

3. Saturated KCLsolution 10ml

4. Protein-removing solution 10ml

5. Electrode solution 10ml

Features

• It can measure the concentrations of K+, Na+ , Cl- and Ca++ andpH values.
• Applies ISE (Ion Selection Electrode), which gives the instrument the advantages of minimum maintenance, easy assembly and disassembly, as well as stable and reliable measurements.
• Working Modes:
• Normal mode: automatic calibration; this mode adapts to large and middle scale hospital with largesample volume; sleep functions which can save reagent.
• Saving mode: 24 hours reagents consumption is only 7ml when it does not measure. This mode. adapts to hospital with small sample volume.
• Each test channel can be closed separately, So it is convenient to do emergencymeasurement.
• 110mm×60mm LCD display, automatic screensaver, friendlyinterface, easy to operate.
• Mini thermal printer can print repeatedly at any moment. It is convenient to feed paper. And the print is very clear.
• Revising datas automatically to ensure the accuracy of data.
• It can save1500 test results, data will not be lost even if the power is cut off. Users can inquire or print at any moment.
• The instrument is equipped with a RS232 serial port, which canbe connected to computer. It may collect, manage and print measure result by relevant software.
• It has electrode-checking function. Users can do correspondingmaintenance according to checking result
• Exempt of routine maintenance, this greatly lighten the burdenof operators; In-side software self-checking can suggest userseliminate the malfunction in time.
• Advanced and reliable fluid position examination technologycan save reagent
• Adopt built-in operating system leads to a reliable performance.
• Users can modify each setting to meet different requirements
• The quality-control inspecting function can track the accuracy ofthe instrument.
