Specifications
Brand Name :
GOLGATHA
Model Number :
GGT - 4013
Certification :
CE/ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
1-10000 PCS per month
Delivery Time :
1-30 work days
Packaging Details :
Conventional packing
Properties :
Medical X-ray Equipments & Accessories
Output power :
40kw
Frequency :
50kHz
Description

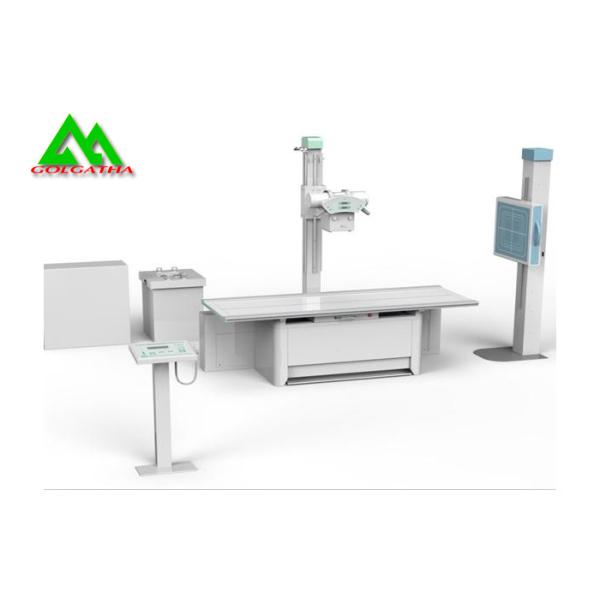

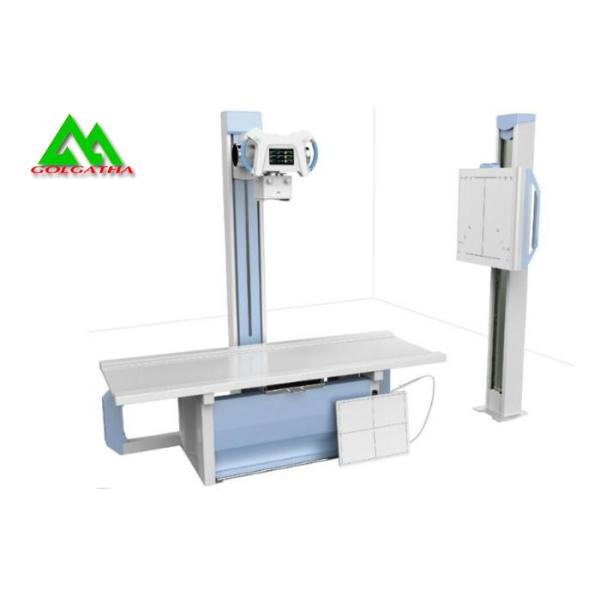

Flat Panel Digital X-ray Machine

Product Description
I. Application:

This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbus and abdomen and etc.

II. Feature

1. Anti-electroshock, radiation-proof, and full wave commutation.

2. Exact dose with computer controlling system, ensure high quality image

3. Structure designed based on anthropotomy, with beautiful appearance, and easy to operate.

4. With electromagnetism controlling system, fluctuation bed board and manual operation pillar to ensure a fast and reliable location.

5. Convenient to take stretcher photograph.

III. Specifications

Item content
Output power 40 kW
Main inverter frequency 50 Hz

X-ray tube

(Toshiba)

 Rotary anode, dual-focus
Large/ Small focus 2.0mm/ 1.0mm
Power of large/ small focus 50kW/ 30kW.
Tube thermal capacity 1100kJ
Tube current 32-500mA Step adjustment
Tube voltage 44kV-125kV 41 Steps adjustment
Time 0.02-4.0 s

Table radiography grids

(Imported)

Grid density: 103L/inch

Grid ratio: 10:1;

Focusing Distance: 100cm

Stationary type: 15"×18"
Mechanical Movement SID: 500-1280mm
X-ray tube Longitudinal movement 1300mm
X-ray tube Rotation range around transverse axis ±90°
X-ray tube Rotation range around pillar 4* 90
Table Table size 2000×760mm
Table height ≤700mm
Table transverse movement ≥220mm
Table longitudinal movement ≥900mm
Cassette Movement Distance ≥500mm
Power supply

380V three phase 50Hz

40kVA

IV. Standard Configurationt

No. Item Quantity
1 Control console 1
2 High voltage X-ray generator 1
3 X-ray tube 1
4 High voltage cable 1
5 Radiography table (with pillar) 1
6 Manual limiter 1
7 PLD 5000B accessory 1

Option: Bucky stand

(Grid density: 103L/inch, Grid ratio: 10:1, Focusing Distance: 180cm,

Stationary type: 15"×18", film size: 14"×17")

Our Advantage


1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
