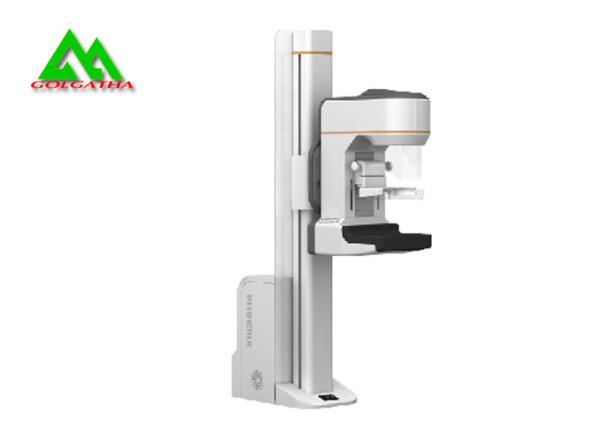

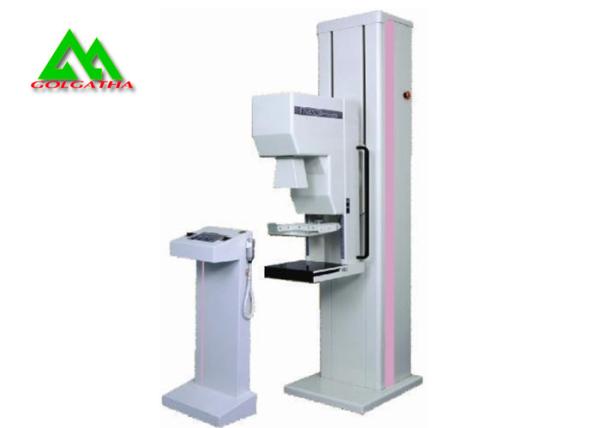

Mammography System

Product Description

Mammography system is integrating designed,with beautiful appearance,manual operation,convenient operation and use; Use the most popular keyboard,Optical mouse operation.

Main Features

1. New Molding shell

2. Three large full color LCD involved

3. Touch Screen

4. Electric isocentric rotating U-arm with an unique automatic back to center function

5. Optional flexible compression systems

6. Optional electric filter

7. Optional digital imaging function:CR or DR

8. Original mammary texture examination function

9. Optional import all-Solid transducer AEC



Function

1 Detect galactocele accurately;

2 Detect intraductal papilloma;

3 Detect mammary duct ectasia and acute mastitis:

4 Detect proliferation of mammary gland and breast cancer.


Technical Data

X-ray Generator

Generator Type:High Frequency Inverter 40kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings:Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating:3.6kW


X-ray Tube

Model: IAE C339V
Focal Spot Size: Dual Focus 0.1 / 0.3mm
Target Material:Molybdenum (Mo)
Port Material:Beryllium (Be)
Anode Heat Storage: 300kHU
Anode Cooling:Air cooling
Filtration: Mo(0.03mm),Al(0.5mm)


Radiographic Stand

C-ARM:Vertical Movement:580mm
Rotations Deg:+175°~-180°
SID: 650mm

Cassette Image Receptor

Bucky Device:18×24cm Bucky drive mechanism
Grid Ratio:5:1 ,30 Line/cm

Line Voltage

220Vac@25A,Single phase

Weight

240kg
