Specifications
Brand Name :
GOLGATHA
Model Number :
GGT - 3016
Certification :
CE/ISO
Place of Origin :
Guangzhou China
MOQ :
1
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
1-1000000 PCS per month
Delivery Time :
1-30 work days
Packaging Details :
Conventional packing
Display :
15” Touch Screen
Transducer frequency :
2-11Mhz
Scanning depth :
300mm
Power supply :
AC 100-240V 50/60HZ <80VA
Net weight :
Approximately 3.0kg
Gross weight :
Approximately 5.0kg
Description

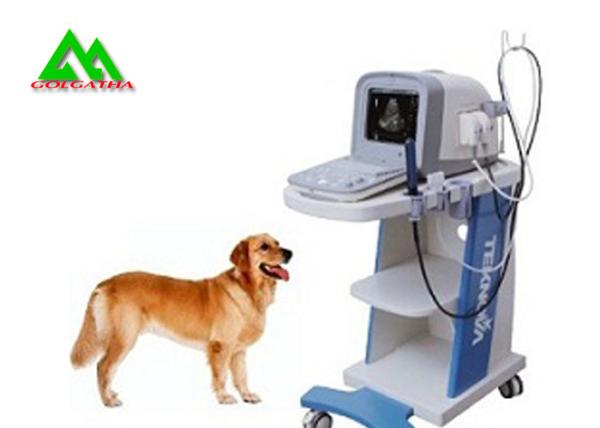

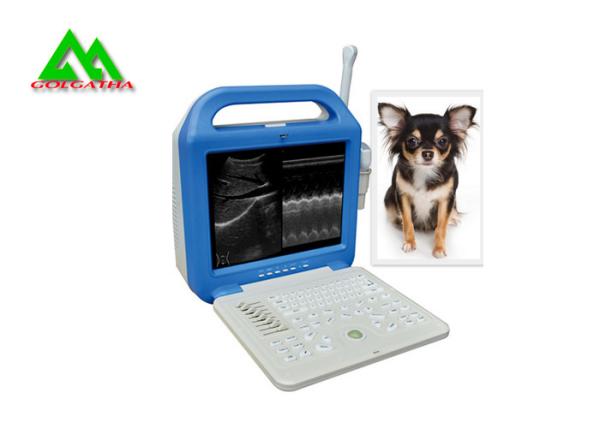

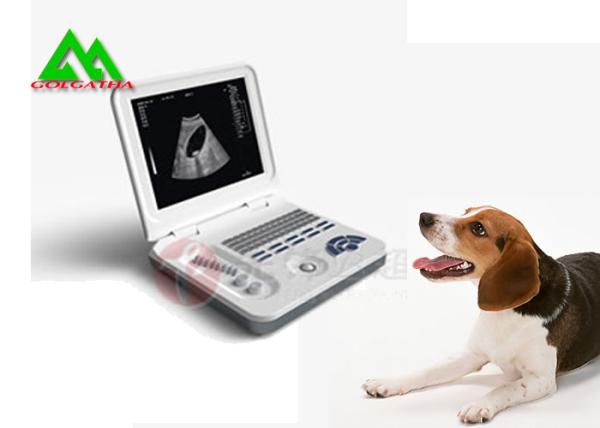

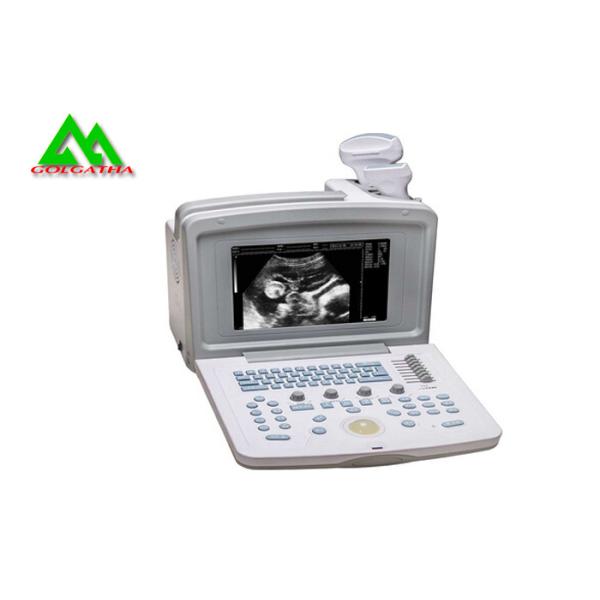

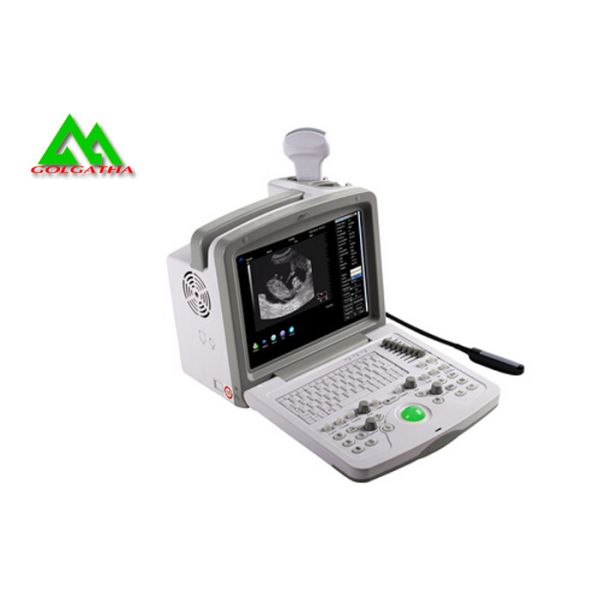

Portable Full Digital Vet Ultrasound Scanner for Animal

B&W mode B,M,2B,B/M,4B
Gray scale 256
Display 15” Touch Screen
Transducer frequency 2-11Mhz
Digital technology
Wide-angle imaging
Panoramic focusing technology
Rolling M technology
Scanning depth 300mm

Imaging Processing
Pre-processing
Cloud processing technology
8-segment TGC
Gain(B&W)
Dynamic range
Persisitence
M Soften
Noise suppression
Post-processing
Image enhancement
Gray Map
Colorize Map
Tissue Specific Imaging
Left/right reverse
Up/down reverse
Functions:
Cine-loop 334 frame cine loop memory
USB ports 2
Zoom Pan zoom
THI Tissue Harmonic Imaging
DICOM 3.0 DICOM 3.0
Permanent storage 1024

Measurement & Calculations
B mode Distance, angle, area, volume, trace length, distance ratio
M mode Distance, time, slope, HR
Software packages Abdomen, OB, gynecology, small Part

Others
Transducer connector 2 active transducer connector ports
Peripheral ports
Video,2 USB ports,1 networking port,1 power inlet,
1 equipotential terminal
Power supply AC 100-240V 50/60HZ <80VA
Dimensions(main unit) 358mm(W)´366mm (L)´65mm (H)
Packing dimensions 378mm(W)´376mm(L)´85mm(H)
Net weight Approximately 3.0kg
Gross weight Approximately 5.0kg
