FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
Specifications
Brand Name :
FRS
Model Number :
FRS-370
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Unit /month
Delivery Time :
30 Unit
Packaging Details :
Wooden case
After-sales Service Provided :
Engineers available to service machinery overseas
Application :
For tablet presss
Material :
316L Stainless Steel
Max. Pressure(KN) :
80
Max. Tablet Thickness :
6mm
Max. Tablet Diameter :
13mm
Max Pressure :
80kn
Max Depth of fill :
15 mm
Warranty :
12 months
Weight :
1700 kg
Description
Product Description

Product Application

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, eiectronics.

SPECIFICATIONS FOR FRS-37D Tablet press machine
1
Model
/
37D
2
Type
Sets
37
3
Max. Pressure
Kn
80
4
Max. dia. of tablet
mm
13
5
Max. Depth of fill
mm
15
6
Max of largest tablet
mm
6
7
speed
r/min
14-37
8
Production capcity
pcs/h
160000
9
Motor
kw
4
10
Overall dimensions
mm
1230*950*1670
11
weight
kg
1700
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical IndustryFRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry

Main Features

1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMPrequirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.

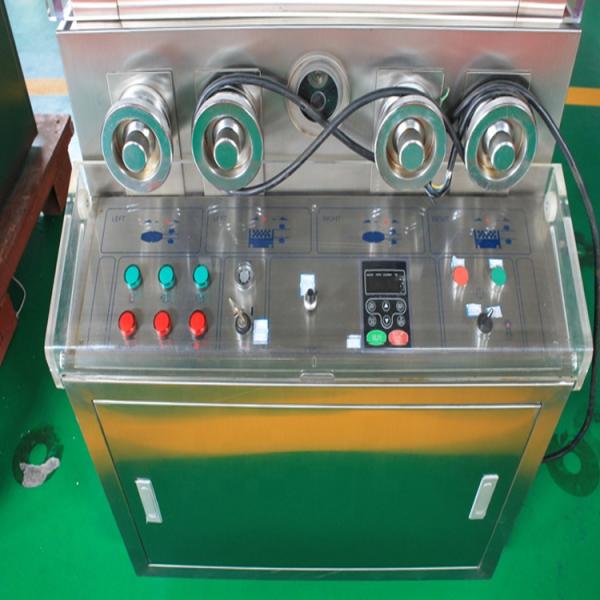

6. Combining machine with electricity, equipped with touching key and screen.
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.

Detailed Images
FRS-37D High Pressure Tablet Press Machine for Pharmaceutical Industry
