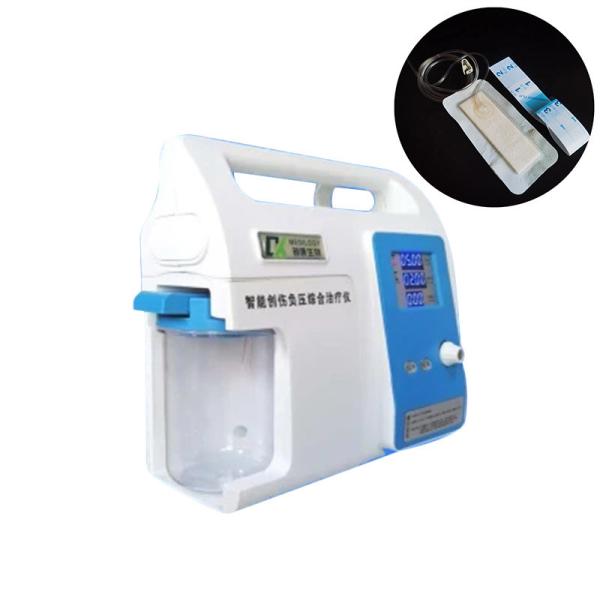

High Quality Negative Pressure Wound Therapy Instrument With Drainage Dressing Set

The user must read the manual carefully before using the product.

Check that the probe and sealing plug of the negative pressure bottle should not be skewed, and slowly and horizontally push the negative pressure bottle into the installation position of the main body


Long press "shift mark/modify" button to check the working parameters of the equipment
Line 1: Display battery voltage (the power switch is on AC, this value is 0)
Line 2: Display the working current of the negative pressure pump (real-time monitoring of the negative pressure pump current, immediately stop the machine for protection if there is any abnormality)
Line 3:Display negative pressure pump temperature (real-time detection of negative pressure pump temperature, temperature above 36ºC will automatically open scattered
Hot fan, over 70ºC,Negative pressure pump shutdown protection)

If there is a sudden loss of pressure during the using of the machine, there is no need to worry that the liquid in the negative pressure bottle will flow back to the patient's part, because there is a duckbill valve device in the negative pressure bottle, which stipulates that the liquid can only flow from the outside of the negative pressure bottle to the inside of the negative pressure bottle, because its positive opening pressure is very low, and the reverse pressure is very high, so there will be no backflow


Replacement of negative pressure bottle

Remove : remove the negative pressure bottle from the left side of the machine, palm up, hook the handle of the blue cover of the negative pressure bottle with the index finger and middle finger of the left hand, hold the thumb against the shell, and pull it horizontally to the left slightly to take out the negative pressure bottle, as shown in the figure below

Installation: prepare the new negative pressure bottle, connect one end of the elbow of suction connection pipe to the suction port of the negative pressure bottle, and insert the negative pressure bottle buckle with the left palm to the negative pressure bottle cavity of the machine

Remove the battery fixing screw from the back shell of the machine with a cross screwdriver; Use thumb, index and middle finger cards
Live the battery buckle pull ring, thumb and index finger to close together; At the same time, the wrist is pulled outward in the direction perpendicular to the battery, that is, the battery can be removed, and a new battery can be replaced in the opposite way and be put into the machine

This device stores 6 commonly used negative pressure closed drainage treatment programs and a user-definable negative pressure treatment program in CUP of mainboard. When the power is turned on, a command is input from the therapeutic device screen and a treatment program accordingly. Then a driving circuit on the main board generates a certain frequency of current to act on the negative pressure pump to generate a negative pressure. During operation, the pressure sensor detects and monitors the negative pressure change, at same time these negative pressure information is transmitted back to the CPU. Through this dynamic control, the working frequency of the negative pressure pump is continuously kept relatively stable preset-value, thereby achieving the effect of negative pressure treatment.

Electric Negative Pressure Wound Therapy System Pump is intended to deliver negative pressure via the Negative-pressure Wound Therapy System Dressing Sets to the breached or compromised surface wound, in order for the removal of fluids, including wound exudates, irrigation fluids, body fluids and infectious materials, and is used only in hospital environment, not for civilian, household, ambulance and field hospital.

The device is applicable to the following treatment areas:
Acute wound.
Chronic and refractory wounds.
Wound surface requiring drainage due to excessive fluid leakage after surgery.

The device is forbidden use in such wound as:
Undebridable wound with necrotic eschar
Wounds with tumor tissue.
Fistula communicating with internal cavity viscera.
Wounds with large blood vessels or organs exposed.

The company promises to provide warranty service within one year from the date of purchasing the equipment produced by the company. If the product itself has quality problems, the company has the right to choose to repair or replace the product without adding any cost to the user.
The company will not be jointly and severally liable for product damage caused by abuse, accident, improper operation or violation of instructions for use. The customer must return the warranty registration card to the company within 30 days after the product is damaged, otherwise it will be deemed invalid. Information such as invoices and product serial numbers must be filled in. The warranty card is limited to the original purchaser and cannot be transferred.

1. What is the advantage of quality?
The company is furnished with developed equipment and technology from Germany, Belgium, and Taiwan (area).

2. What is MOQ?
30,00 pcs, It depends on the requirements of the products.

3. How to place an order?
Place an order with the salesperson
Make payment for deposit;
Sample making for confirmation before mass production;
After the sample is confirmed, mass production starts;
Goods are finished, inform the buyer to make payment for the balance;
Delivery.
Production time: 30-40 days.

4. What is your term of payment?
T/T is a regular payment (30% in advance, 70% before shipping).
Paypal and Western Union are just for a sample
