Hot Water Air source heat pump water heater
1.High COP,EER,75% Energy -saving
2. Have been tasted and designed in accordance with Europen Standards
3.Servilce lift can reach up to 15 years,low maintence cost
4.Automatical high/low pressure protection, Automatical defrosting.
5.Heating&cooling
6. Use three-way valve can heating cycle water tank for shower or house heating system
7.Have been tasted and designed in accordance with Europen Standards
8.Can use EVI Compressor to work at low temp -25C
-

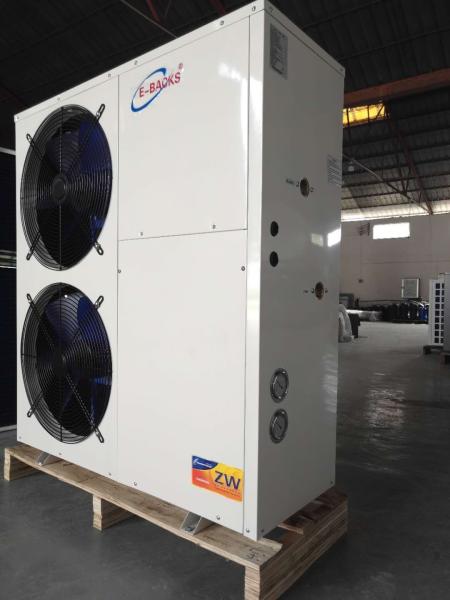

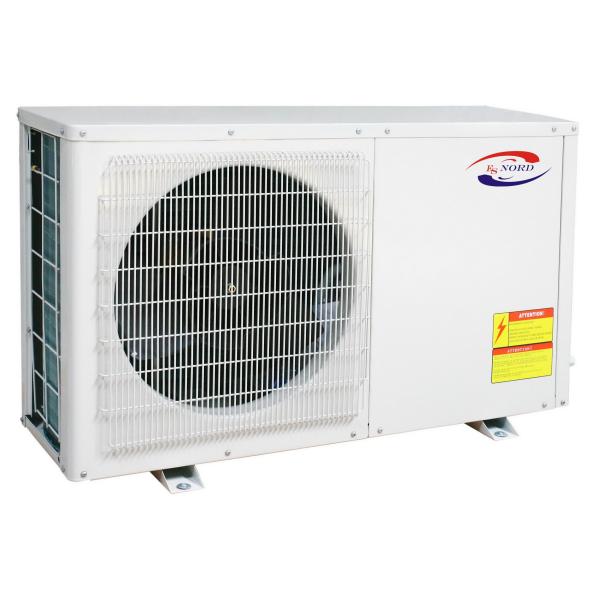

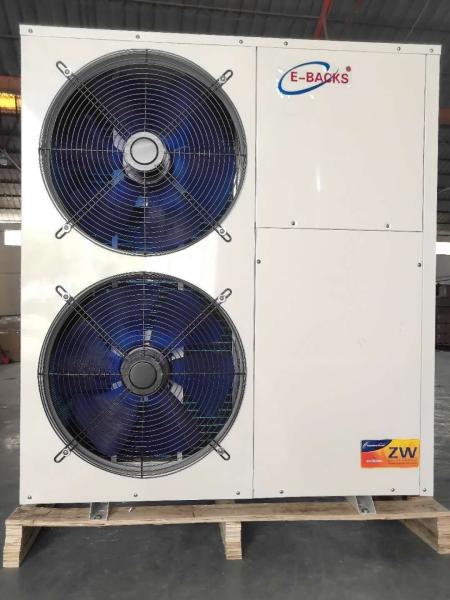

Pictures for reference.
-
-
-
Hot Water Air source heat pump water heater 21.6kw Technical parameters:
MODEL |
Unit |
ASH21 |
Rated heating capacity |
KW |
21 |
Hot water supply |
L/h |
520 |
Average heating input power |
KW |
5.4 |
Rated heating input current |
A |
12 |
Max outlet water temp |
°C |
60 |
COP |
- |
4.2 |
Power |
V/Hz |
380/50 |
Noise |
Db(a) |
60 |
Dimension |
W*D*H |
mm |
1120*490*1270 - |
Packing size |
W*D*H |
mm |
1200*520*1425 |
Unit weight |
KG |
180 |
Refrigerant |
- |
R417A/R407C/R404A |
Working air temp range |
- |
(-25°C)—45 °C |
compressor |
Type |
- |
Copeland |
Air source heat exchanger |
Type |
- |
Finned heat exchange |
Fan Type |
- |
axial flow fan |
Hot water side heat exchange |
Type |
- |
Coil heat exchanger |
Water flow |
L/H |
7000L/h |
Water pressure down |
Kpa |
48 |
Pipe size |
DN |
32 |
-
-
Trade term: Hot Water Air source heat pump water heater
1> Packing: Standard Export Packing (Plywooden case)
2> Pay term: 30% T/T Of Total value as deposit to start the produce, And 70% the balance before shipping
3> Delivery time: within 15 days after receive the deposit
4> Effective date: The price validity is 1 month
5> Warranty: 14 months Since the delivery day
6> Discount will be offered base on one container
7> MOQ=3
-
-
Hot Water Air source-heat pump water heater Installation picture for reference.-
-
-
-
