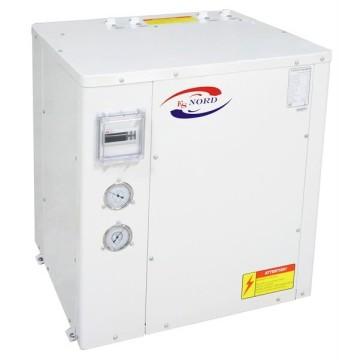

Geothermal Heat Pump

11 year's manufacturer.
Provide OEM service.
CE certificate.
High COP, EER, 75%Energy-Saving.

Service lift can reach up to 15 years,low maintence cost.

Automatical high/low pressure protection.

-

-

Meeting geothermal source heat pump is combine high end technical and easy to control with digital remote . Our heat pump can work through whole year whatever the weather change . It's no waste , no pollution , no CO2 exhaust ,no extral electricity comsumption , for it's safety , saveing , serious same like solar safety , same like a LED saving .

-

-

-

-

Geothermal source heat pump

Renewable Products

1>They use renewable source , like earth, soil

2>They delivery low comsuption heat for heating your house

3>They delivery a significant contribution in the fight aginst CO2 emission

4>they can provide heating and cooling and domestic hot water

-

Geothermal source heat pump

Technical Parameters:

Technical parameters:MDS30D

Rated Power:2.9KW

Heating capacity :12KW

Cooling Capacity :9KW

Rated voltage:220V or 380V

Rated current:13A or 6A

Rated frequency:50HZ

Outlet water rated temp:55C

Outlet water max temp:60C

Water flow:3600L/H

Hot water pipe size:DN25 mm

Cold water Pipe size:DN25 mm

Dimension:706×706×650 mm

Weight:100Kg

Noise:50Db

Defend grade:IPX4

Defend electric shock grade:1 Grade

Refrigerant:R417A/R407C/R404A

Compressor:Copeland

-

Major collocation:compressor,evaporator,condenser,electronic control system

Has been tested and designed in accordance with Europen standards.

-

Features:

-

1.Ground source heat pump use the constant temperature of the earth as exchange medium instead of the outside air temperature.This allows the system to reach fairly high efficiency (300%-600%) on the coldest winter night,compared to 175%-250% for air source heat pump on cool days.

-

2.Relative to air source heat pump,they are quieter,last longer,need little maintenance,and don't depend on the temperature of the outside air.

-

3.The system may be used for air conditioner in summer,as well as a heating system in winter.A high efficiency heat pump can provide four times the heat compared with an electric heater.

-

4.And system life is estimated at 25 years for the inside components and 50+ years for the ground loop.

-
