Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Borehole Water Well Drilling Rig Machine
Specifications
Brand Name :
MEGA DRILLTECH
MOQ :
1
Description

Product Description:

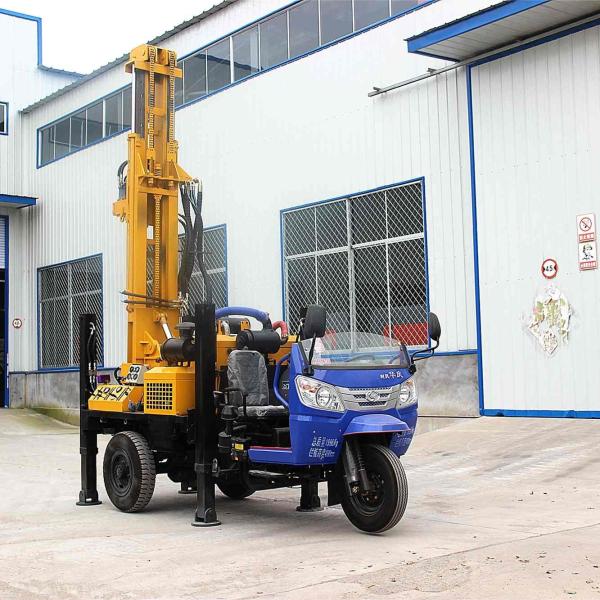

This kind drilling rig using the principle of pneumatic impact, the drilling pictures is fast and efficient. The automobile chassis adopts an agricultural three-wheeled car with a reasonable and compact layout and effortless operation.
1. Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable.
2. The important engine is equipped with a high-power diesel engine with strong electricity to meet work needs.
3. Equipped with hydraulic lifting and lowering composite drill boom, which saves space and presents powerful lifting force for deep gap operations.
4. The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor electricity heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
5. Equipped with speedy rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
6. Centralized operating handles, lifelike layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.

Borehole Water Well Drilling Rig MachineBorehole Water Well Drilling Rig Machine

Specification:

The weight
(T)
4.7
Drill pipe diameter
(mm)
Φ76 Φ89
The hole diameter
(mm)
140-254
Drill pipe length
(m)
1.5m 2.0m 3.0m
Drilling depth
(m)
200
Rig lifting force
(T)
13
One-time advance length
(m)
3.3
Rapld rise spoed
(m/min)
20
Walking speed
(km/h)
20-40
Fast feeding speed
(m/min)
40
Climbing angles
(Max.)
30
Width of loading
(m)
45-65
Equipped capacitor
(kw)
65
Hoisting force of winch
(T)
~
Using air pressure
(MPA)
1.7-2.5
Swing torque
(N.m)
3400-4700
Air consumption
(m³/min)
17-31
Dimension
(mm)
4350*1600*2450
The penetration efficiency
(m/h)
10-35
High leg stroke
(m)
1.4
Product tags

water well drilling machinery

,

water rig drilling machine

,

water well drilling machine
