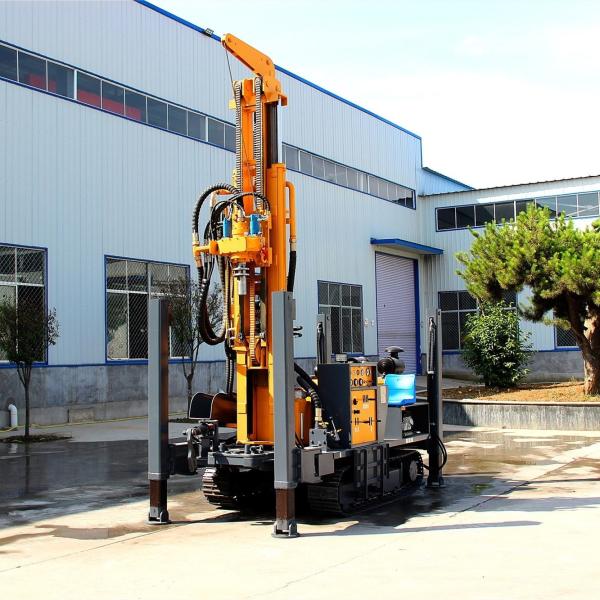

Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Gasoline Diesel Drill Machine Water Well Drilling Rig Machine
Specifications
Brand Name :
MEGA DRILLTECH
MOQ :
1
1 :
collection water well drilling rig uses full hydraulic control, and the Top pressure to drive the rotation of drilling tools with very excessive drilling efficiency.
2 :
Reasonable overall layout makes use of the tractor-mounted or full ground chassis for transportation with good maneuverability.
3 :
Very bendy in difficult roads and can be widely used in many fields such as useful resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine fuel exploitation salvag
4 :
The top-mounted driving head principal shaft has a remarkable drift diameter, suitable for many sorts of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the needs for well-drilling at different terrain strata.
Description

Product Description:

1. The chassis of the drilling rig adopts a expert visiting motor with a gearbox, which has an extended carrier life;

2. The gearbox is integrally shaped, double automobiles, more potent electricity, massive torque, more long lasting, and espresso preservation cost;

3. It adopts professional excavator chassis, which is sturdy and sturdy, bears heavy load, widespread chain plate, and has little damage to hard avenue floor;

4. Each hydraulic oil pipe is protected with a thick protecting sleeve, which makes the oil pipe have an prolonged service lifestyles;

5. Dual structures can be hooked up: 1. air electricity device with air compressor 2. mud pump desktop with dust pump

Product display:

Gasoline Diesel Drill Machine Water Well Drilling Rig MachineGasoline Diesel Drill Machine Water Well Drilling Rig Machine

The weight(T)
6.5
Drill pipe diameter(mm)
Φ76 Φ89
The hole diameter(mm)
140-305
Drill pipe length(m)
1.5m 2.0m 3.0m
Drilling depth(m)
260
Rig lifting force(T)
15
One-time advance length(m)
3.3
Rapid rise speed(m/min)
24
Walking speed(km/h)
2.5
Fast feeding speed(m/min)
28
Climbing angles(Max.)
30
Width of loading(m)
2.73
Equipped capacitor(kw)
70
Hoisting force of winch(T)
1.5
Using air pressure(MPA)
1.7-3.0
Swing torque(N.m)
4000-5300
Air consumption(m³/min)
17-31
Dimension(mm)
4000×1850×2300
Swing speed(rpm)
45-70
Equipped with hammer
Medium and high wind pressure series
The penetration efficiency(m/h)
10-35
High leg stroke(m)
1.4

Product tags

rig water drilling machine

,

water rig drilling machine

,

water drilling rig machine
Send your message to this supplier
Send Now

Gasoline Diesel Drill Machine Water Well Drilling Rig Machine

Ask Latest Price
Product Detail
Brand Name :
MEGA DRILLTECH
MOQ :
1
1 :
collection water well drilling rig uses full hydraulic control, and the Top pressure to drive the rotation of drilling tools with very excessive drilling efficiency.
2 :
Reasonable overall layout makes use of the tractor-mounted or full ground chassis for transportation with good maneuverability.
3 :
Very bendy in difficult roads and can be widely used in many fields such as useful resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine fuel exploitation salvag
4 :
The top-mounted driving head principal shaft has a remarkable drift diameter, suitable for many sorts of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the needs for well-drilling at different terrain strata.
